Stop wasting time on confusing manufacturer sites to get the data you need. Sourcing the Schweitzer sel 751 Feeder Protection Relay in Australia shouldn’t be a challenge. If you’re struggling to find clear specifications, trying to decide between the 751 and the newer 751A, or just looking for a local supplier with stock and competitive pricing, you’re in the right place. This is your no-nonsense guide to getting the right relay for your project at the best possible price.

Here, we cut through the technical jargon. We’ll give you a direct breakdown of the SEL 751’s key features, its primary applications, and a clear comparison to the 751A upgrade so you can make an informed choice. Most importantly, we’ll show you how to source it efficiently in Australia and SAVE on manufacturer RRPs. Get the facts you need to specify and purchase with confidence, fast.

What is the SEL 751 Feeder Protection Relay?

The Schweitzer Engineering Laboratories (SEL) 751 Feeder Protection Relay is a versatile and powerful device for industrial and utility power systems across Australia. It delivers comprehensive protection, monitoring, and control for medium-voltage feeder applications. Known for its reliability and advanced features packed into a compact, cost-effective unit, the sel 751 is a go-to solution for engineers needing performance without a high price tag.

This relay provides a complete solution for feeder management, combining protection functions with automation logic, high-accuracy metering, and detailed event reporting to simplify operations and improve system uptime.

Core Purpose: Protecting Your Electrical Feeders

An electrical feeder is a critical power line that distributes electricity from a substation to downstream transformers and loads. The core purpose of the sel 751 is to protect these vital assets. It continuously monitors electrical conditions, and for those wanting a foundational overview, Wikipedia offers a great explanation of What is a Protective Relay? When the relay detects a fault, such as an overcurrent or short circuit, it instantly sends a trip signal to a circuit breaker. This action isolates the faulted section of the network, preventing widespread outages and protecting expensive equipment like motors and transformers from catastrophic damage. It is robust enough for use in both primary and backup protection schemes.

Typical Applications Across Australian Industries

The SEL 751 is deployed in a wide range of demanding environments where power reliability is non-negotiable. Its flexibility makes it ideal for many Australian sectors:

• Industrial Plants: Essential for protecting motor feeders, transformers, and main distribution lines within manufacturing facilities and processing plants.
• Utilities: Widely used in substations for comprehensive feeder protection, automatic reclosing, and implementing advanced distribution automation schemes.
• Mining Operations: Provides dependable protection for critical equipment in harsh and remote mining sites, ensuring operational continuity.
• Renewable Energy Projects: Key for integrating and protecting collector feeders in solar and wind farms, as well as managing grid interconnection points.

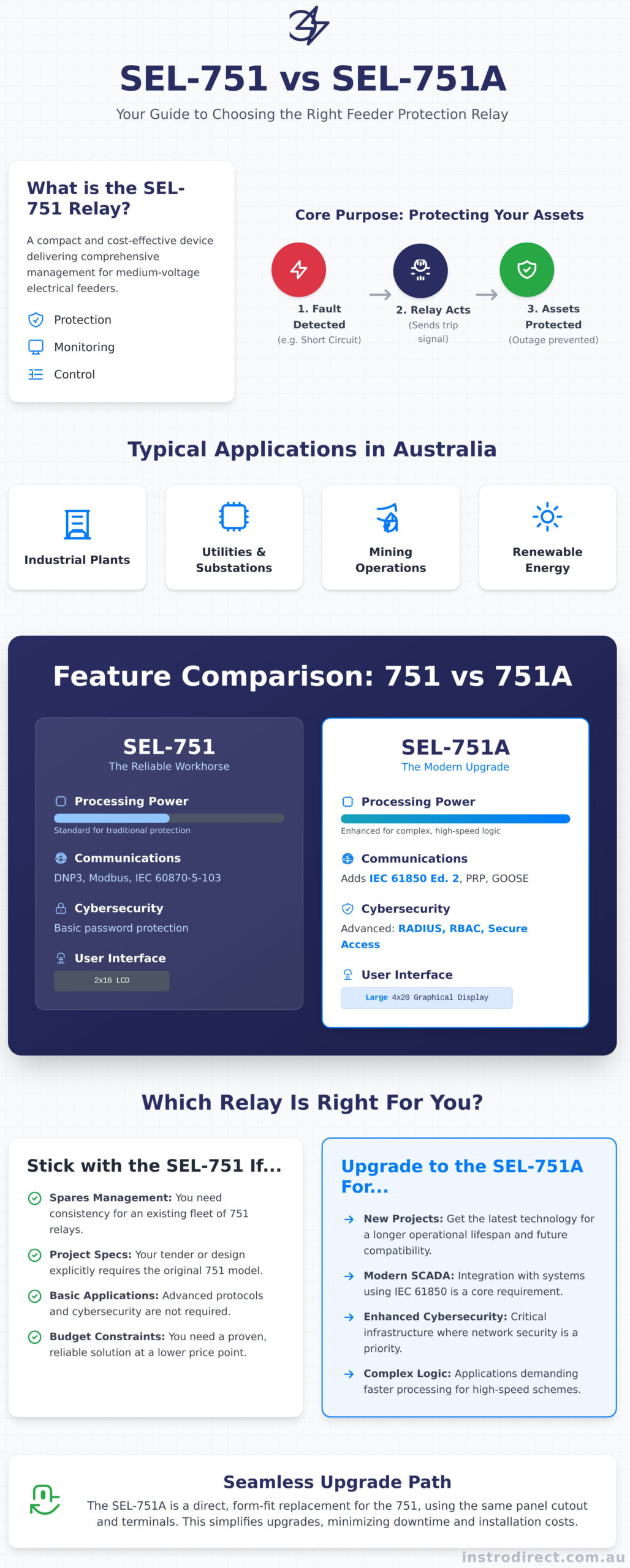

SEL 751 vs. SEL 751A: Key Differences and When to Upgrade

The SEL 751A is the direct successor to the widely deployed sel 751 Feeder Protection Relay. While the original remains a robust and reliable workhorse in countless Australian substations, the 751A introduces significant upgrades in processing power, communication protocols, and cybersecurity. Understanding these differences is key to making the right purchasing or upgrade decision for your operation.

The primary improvements focus on future-proofing your assets for modern, interconnected power systems. The 751A is built for higher performance and enhanced security in today’s demanding network environments.

Feature Comparison: Performance and Connectivity

Here is a direct, side-by-side look at the core technical differences between the two models.

When to Stick With the SEL 751

Sticking with the original SEL 751 is a practical, cost-effective choice in specific situations:

• Spares Management: For maintaining consistency and simplifying spares inventory in existing switchboards populated with SEL 751 relays.
• Project Specifications: When a project tender or engineering specification explicitly requires the exact 751 model.
• Basic Applications: If advanced communication protocols like IEC 61850 or heightened cybersecurity are not required for the application.
• Budget Constraints: For projects with tight budgets where the 751’s proven feature set is sufficient, delivering excellent value at a lower price point.

Deciding to Upgrade to the SEL 751A

Upgrading to the SEL 751A is the strategic choice for new installations and system modernisations:

• New Greenfield Projects: The 751A provides the latest technology, ensuring a longer operational lifespan and compatibility with future systems.
• Modern SCADA Integration: Essential when integration with modern control systems using IEC 61850 is a core requirement.
• Enhanced Cybersecurity: For critical infrastructure where network security is a priority, meeting NERC CIP or equivalent standards. Ensuring your protection scheme aligns with modern IEEE application standards is critical for new builds.
• Complex Logic: Required for applications demanding faster processing for high-speed protection schemes or extensive custom logic.

Crucially, the SEL 751A is designed as a direct, form-fit replacement for the 751, using the same panel cutout and terminal assignments. This simplifies the upgrade path, minimising downtime and installation costs.

Deep Dive: SEL 751 Technical Specifications and Features

The SEL-751 Feeder Protection Relay is more than a basic device; it’s a comprehensive solution for feeder management. This section breaks down the technical datasheet into the practical features that deliver value, protection, and control for your Australian operations. Get the specs you need, fast.

Comprehensive Protection Elements (ANSI Codes)

The core function of the sel 751 is robust protection. It provides a full suite of ANSI-standard functions to safeguard your critical assets against a wide range of electrical faults, minimising damage and costly downtime.

• Overcurrent (50/51, 50N/51N, 50G/51G): Provides essential time-overcurrent and instantaneous protection for phase, neutral, and ground faults. Fast, reliable tripping for short circuits and overloads.
• Voltage & Frequency (27/59, 81): Protects equipment from damage caused by under/overvoltage and frequency deviations, critical for maintaining power quality and stability.
• Directional Control (67): Essential for networked systems. This function ensures the relay only trips for faults in the intended direction, preventing unnecessary outages in looped or parallel feeders.
• Arc-Flash Detection: Optional high-speed light-sensing inputs can detect an arc flash in milliseconds. This significantly reduces incident energy and improves personnel safety during maintenance.

Monitoring, Metering, and Control Capabilities

Beyond protection, the SEL-751 delivers high-value data and control. High-accuracy RMS metering for voltage, current, power, and energy provides the data needed for load analysis and system optimisation. The detailed Sequential Events Recorder (SER) captures high-resolution event data, allowing engineers to quickly diagnose faults and restore service. Integrated breaker control logic and wear monitoring help you schedule maintenance proactively, extending the life of your switchgear. Explore our full range of protection relays in the InstroDirect shop.

Physical I/O and Communication Options

Seamless integration is key to lowering project costs. The SEL-751 offers flexible I/O, including multiple digital inputs and output contacts, to connect with your existing equipment. Communication is handled via standard serial (EIA-232, EIA-485) and Ethernet ports. Support for common protocols like Modbus, DNP3, and optional IEC 61850 ensures it can communicate directly with your SCADA, HMI, or DCS. This level of interoperability is crucial in modern applications, a topic covered extensively in the official SEL 751 Technical Paper from the manufacturer. These options reduce engineering time and make retrofits straightforward and cost-effective.

How to Configure and Order Your SEL 751

The SEL 751 Feeder Protection Relay is not a one-size-fits-all product. It is a highly configurable device built to your exact specifications. To get the right protection and the best price, you must define the features you need using a specific ordering code or part number. This ensures you don’t pay for advanced options your application doesn’t require.

Getting the part number right is critical for accurate quotes and fast delivery. Below, we break down how to build and order the perfect sel 751 for your project.

Decoding the SEL 751 Part Number

Every feature of the relay is represented by a character in the part number. Understanding this structure is key for engineers and procurement managers creating purchase orders. A typical part number looks like this: 751001A0A2A8X0X.

Here is a simplified breakdown of what each position represents:

Common Configurations for Australian Applications

For a typical industrial feeder in Australia, a standard configuration often includes a 110-240 VAC power supply, standard digital I/O, and DNP3 communications protocol. For advanced substation automation or SCADA integration, models with fibre-optic Ethernet ports and the IEC 61850 protocol are a popular choice. For custom needs or to see all available options, you can browse options in our online shop.

Getting a Quote from InstroDirect

Don’t know the exact part number? No problem. Our experts can help you build the right configuration for your application and provide a direct, low-cost quote. We source globally to get you the best prices.

• Step 1: Send us your technical requirements or single-line diagram.
• Step 2: If you have an existing part number, provide it for a competitive price check.
• Step 3: Receive a fast, no-obligation quote. We save you money.

Ready to order? Contact us for a direct quote today!

Sourcing the SEL 751 in Australia: Why Choose InstroDirect?

When your project requires the proven performance of a Schweitzer Engineering Laboratories relay, getting the best price is critical. InstroDirect is the smart choice for Australian businesses needing to source the sel 751 Feeder Protection Relay. We combine unbeatable pricing with reliable local service, ensuring you get genuine, new-in-box equipment without paying inflated local distribution costs.

Our Direct Import Model = Better Pricing

We operate on a parallel importing model. What does this mean for you? We source 100% genuine SEL products directly from authorised distributors globally and import them into Australia. This simple, direct model bypasses the traditional supply chain and its associated markups. The result is a significant cost reduction passed directly to you. You get the exact same factory-sealed equipment for a much better price. Our commitment is simple: deliver BIG SAVINGS on the world’s best industrial automation brands.

Availability, Shipping, and Expert Support

Getting the right part quickly is essential to keep your operations running. We address the key concerns of availability, delivery, and support head-on. While specific lead times for the sel 751 can vary, our strong global network ensures we can source and deliver equipment faster than many traditional channels.

• Fast Australian Shipping: We provide reliable and prompt shipping to every state and territory, from Perth to Brisbane and everywhere in between. Your equipment arrives safely and on time.
• Genuine, New Equipment: We ONLY supply new, in-box, factory-sealed products. You receive genuine SEL equipment with the quality and reliability you expect. No grey market copies or refurbished units.
• Expert Local Support: Have a technical question? Need help confirming a part number? Our expert team is available by phone during Australian business hours. IF YOU CANT FIND IT, RING US. WE ARE HERE TO HELP.

For the best price and dependable service on your next SEL relay, choose InstroDirect. Don’t pay more than you have to.

Get Your SEL 751 at the Best Price in Australia

The takeaway is clear: the sel 751 is a powerful, versatile feeder protection relay. Understanding its specifications and when an upgrade from a 751A is necessary is critical for system performance. For Australian projects, sourcing this essential hardware efficiently is the key to staying on budget and on schedule.

InstroDirect is your solution. Through direct parallel importing, we deliver Competitive Direct Import Pricing that slashes standard costs. You don’t just save money; you get the full package with Expert Australian-Based Support for any questions you have and Fast Shipping Across Australia to minimise project downtime.

Don’t overpay or wait on long lead times. Get the hardware you need, faster and for less. Check SEL 751 Availability and Get a Quote Now!

Frequently Asked Questions

What is the standard warranty on an SEL 751 purchased from InstroDirect?

All components supplied by InstroDirect, including the SEL-751, come with our standard 12-month replacement warranty. This is part of our commitment to providing reliable parts at the best prices. If you experience a fault within this period, contact us directly for a fast replacement. We stand by the quality of our globally sourced products.

Is the SEL 751 you supply new or refurbished?

We supply new, factory-sealed SEL 751 relays. As parallel importers, we source genuine, new-in-box products from a global network of suppliers. This allows us to offer amazing deals and lower pricing compared to local distributors. You get a brand new, unused unit with significant savings on the manufacturer’s recommended retail price.

What is the typical lead time for an SEL 751 relay in Australia?

Lead times for the SEL 751 vary based on configuration and current stock levels. For common models, we often have local stock in Australia for immediate dispatch. For specific or non-stocked configurations, lead times are typically 2-4 weeks. For the most accurate delivery estimate on your required relay, contact our sales team directly.

Does the SEL 751 come with the AcSELerator QuickSet software?

The AcSELerator QuickSet software is not included in the box with the relay. This software is provided free of charge by Schweitzer Engineering Laboratories. You can download the latest version directly from the official SEL website. This ensures you always have the most up-to-date software for commissioning and managing your relay.

Can you help me select the right SEL 751 configuration if I only have a basic diagram?

Yes, we can definitely help. Our team has extensive experience with industrial components. Send your basic diagram or single-line diagram (SLD) to our technical sales email. We will review your protection requirements and help identify the exact SEL-751 model number you need. IF YOU CANT FIND IT, RING US. WE ARE HERE TO HELP.

What payment options do you accept for industrial components?

We offer several convenient payment options for our customers in Australia. You can pay via direct bank transfer (EFT), major credit cards (Visa, Mastercard, AMEX), or through a pre-approved 30-day trade account for qualifying businesses. All transactions are processed in Australian Dollars (A$). Contact our accounts department to apply for a trade account.
