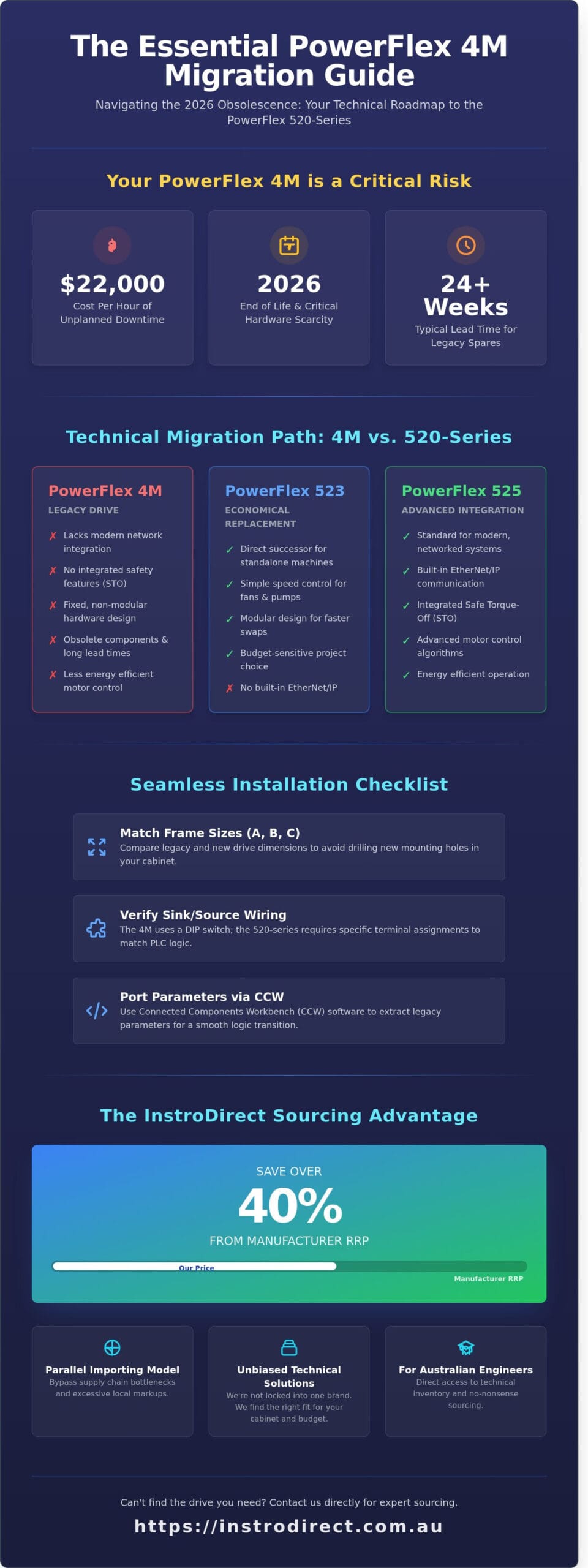

PowerFlex 4M Replacement Guide: Technical Migration to 520-Series Drives

A single hour of unplanned downtime on an Australian production line can cost upwards of $22,000 in lost productivity when legacy components fail. If you’re still relying on the discontinued Allen-Bradley PowerFlex 4M, you’re operating on borrowed time. Finding a reliable powerflex 4m replacement shouldn’t mean paying a 40% markup through traditional distribution channels. We agree that sourcing technical parts in Australia is often too slow and expensive. At InstroDirect.com.au, we aren’t locked into one brand. This means we focus on the hardware that actually fits your cabinet and budget, not just what a single manufacturer wants to sell you.

This guide provides the technical roadmap you need to migrate to the modern PowerFlex 523 or 525 series without the typical headaches. You’ll learn how to select the correct frame size to avoid drilling new mounting holes and how to port your existing logic with minimal adjustments. We’ll show you how to execute a professional 520-series migration that keeps your 24/7 operations running smoothly while you SAVE OVER 40% on hardware costs through our parallel importing model. If you can’t find the specific drive you need, ring us directly and we’ll help you source it today.

The PowerFlex 4M Lifecycle: Why Replacement is Critical in 2026

The Allen-Bradley PowerFlex 4M has served as a workhorse in Australian plants for over 15 years. It is now officially a legacy product. Maintaining these units in 2026 presents severe operational risks. Sourcing spare parts through traditional channels is becoming nearly impossible, with lead times often exceeding 24 weeks. A powerflex 4m replacement strategy is no longer optional; it’s a requirement for plant uptime. The evolution of variable-frequency drive (VFD) technology means the 4M series lacks the integrated safety and EtherNet/IP capabilities found in newer 525 hardware. InstroDirect helps Australian engineers bypass these supply chain bottlenecks. We use parallel importing to secure stock at lower pricing, ensuring you aren’t held hostage by manufacturer RRP or long wait times.

Migrating to modern platforms offers immediate benefits. You get better energy efficiency and advanced motor control algorithms. We aren’t locked into one brand. If a PowerFlex 525 isn’t the right fit for your specific technical challenge, we provide unbiased alternatives that suit your enclosure and budget. Our focus is on value and efficiency for technical automation specialists.

Identifying Your Legacy PowerFlex 4M Model

Check your catalogue number on the side of the chassis. The 22F series code tells you everything. A “22F-D” prefix indicates a 480V three-phase unit, while “22F-A” denotes 240V single-phase. Frame sizes (A, B, or C) are critical for your powerflex 4m replacement because they dictate the physical footprint and mounting holes. Before ordering, verify if your control wiring uses a Sink or Source configuration. The 4M uses a DIP switch for this, but newer 520-series drives require specific wiring terminal assignments to match your existing PLC logic.

The Cost of Inaction: Reliability in 2026

VFD components have a finite lifespan. Electrolytic capacitors typically dry out after 7 to 10 years of service. If your drive operates in environments above 40°C, thermal stress shortens this window by 50%. Waiting for a catastrophic failure usually results in expensive emergency shipping and lost production hours—a risk that applies across all sectors. For example, high-volume restaurants prevent service interruptions when they explore Commercial Pizza Ovens built for continuous use. A planned migration is always cheaper than a reactive repair. Use our VSD ROI Calculator to see how much you save by upgrading to high-efficiency hardware now. InstroDirect offers amazing deals on migration hardware to keep your project under budget.

• SAVE OVER 40% FROM MANUFACTURE RRP on select stock
• Direct access to technical inventory for Australian engineers
• No-nonsense sourcing for EOL components

CANT FIND WHAT YOUR LOOKING FOR, CONTACT US DIRECTLY. We are here to help you navigate the technical shift from legacy 4M units to modern 520-series control.

Technical Migration Path: PowerFlex 4M vs. PowerFlex 523 and 525

The PowerFlex 4M is a legacy component. Engineers planning a powerflex 4m replacement must choose between the 523 and 525 models based on network requirements and safety standards. The 4M utilized a fixed hardware architecture. The 520-series uses a modular design with a removable control module and power module. This reduces downtime during hardware swaps. Refer to the PowerFlex Migration Guide for exact wiring and footprint conversions. InstroDirect provides these units at lower pricing by bypassing local distribution markups.

We aren’t locked into one brand. While we specialize in Rockwell hardware, we also source Siemens and Schneider alternatives. This independence allows us to recommend the most cost-effective technical solution for your specific application.

PowerFlex 523: The Economical 4M Successor

The 523 is the direct powerflex 4m replacement for standalone machines. It features a local human interface module (HIM) and basic I/O configurations. It doesn’t include built-in EtherNet/IP or Safe Torque Off (STO). Use this model for simple speed control in fans or pumps where network integration isn’t a priority. It’s a pragmatic choice for budget-sensitive projects. We stock these for quick dispatch to Australian sites, often saving customers over 40% from manufacturer RRP.

PowerFlex 525: Advanced Control and Integration

The 525 is the standard for modern, integrated plants. It integrates with Allen-Bradley ControlLogix systems via an Add-On Profile (AOP). This allows for automatic device configuration (ADC) when a drive is replaced.

• Standard dual-port EtherNet/IP supports DLR topologies.
• Safety features include SIL2/PLd Safe Torque Off.
• Positioning control is possible with the optional encoder card.

This model meets current AS/NZS safety standards and simplifies complex cabling through daisy-chaining. View our current stock of PowerFlex drives to see how much you can save on your next upgrade. If you can’t find the specific frame size you need, contact us directly and we’ll source it through our global network.

Physical and Electrical Installation: Mounting and Wiring Considerations

Swapping a legacy drive for a modern 520-series unit requires a precise physical assessment. Footprints are rarely identical. A PowerFlex 4M Frame A measures 72mm wide by 174mm high. While the 525 Frame A maintains the 72mm width, the depth increases from 132mm to 172mm. You must verify enclosure depth before starting your powerflex 4m replacement. InstroDirect provides these technical specifications upfront so you can avoid installation delays. Shop our range at InstroDirect PowerFlex Drives for the best prices in Australia.

Thermal management is a primary benefit of the 520-series. These drives utilize Zero Stacking technology. You can mount multiple units side-by-side with 0mm clearance at ambient temperatures up to 45°C. This allows for a 20% reduction in panel space compared to the 4M, which required 50mm gaps between units. For Australian environments with high ambient temperatures, maintaining 50mm top and bottom clearance is mandatory to ensure the 520-series internal fans exhaust heat effectively. InstroDirect isn’t locked into one brand; we offer technical advice across various manufacturers to ensure your cooling solution meets site-specific demands.

Frame Size and Mounting Adaptation

Control and Power Wiring Migration

IF YOU CANT FIND THE SPECIFIC PART RING US WE ARE HERE TO HELP. InstroDirect is the leading choice for engineers who value technical depth and immediate stock availability. Save over 40% from manufacture RRP by sourcing your migration hardware through our transactional platform. Visit our shop to see current deals.

Parameter Mapping and Programming: Transitioning Your Logic

Successful powerflex 4m replacement starts with accurate data extraction. Don’t pull the old drive until you’ve uploaded the parameter set via a 1203-USB converter or manually recorded every value from the HIM. The PowerFlex 4M uses a simplified parameter structure, while the PowerFlex 520-series is far more granular. You’ll need to map legacy registers to the new CCW (Connected Components Workbench) environment to ensure the logic carries over without site-wide failures. At InstroDirect, we see many engineers overlook the communication offsets during this phase, leading to integration delays.

Basic Setup: The Start-Up Manual Migration

The 525 “AppView” simplifies commissioning by grouping motor data. Map P101 (Motor NP Volts) and P102 (Motor NP Hertz) directly to the new drive’s basic motor group. For control logic, P106 (Start Source) and P108 (Speed Reference) define how the drive interacts with your PLC or local potentiometer. If your 4M used a 3-wire start/stop, ensure the 525’s digital inputs are wired and programmed to match. Set the Stop Mode to “Coast” for high-inertia fans to prevent DC bus overvoltage trips during deceleration. This prevents the VFD from fighting the load’s natural momentum.

Advanced Tuning and Protection

High-inertia loads often require DC Injection Braking. In the 525, this is managed via parameter A434. It provides up to 150% rated torque to hold a load at zero speed, stopping it 25% faster than standard ramping. Protection is equally critical. Configure the electronic overload (t043) for Class 10 or Class 20 depending on your motor’s thermal capacity. Use the CustomView feature in CCW to group these specific parameters. It lets your maintenance team access critical data in under 10 seconds without scrolling through 500+ settings.

Shifting from Modbus RTU to EtherNet/IP involves more than just a physical cable swap. Modbus relies on specific 16-bit register addresses. EtherNet/IP uses 32-bit DINT structures. You’ll need to re-map your control words in the PLC to match the 525’s cyclic data format. InstroDirect provides the technical depth to help you navigate these hardware transitions. We aren’t locked into a single manufacturer. We offer unbiased solutions for Australian engineers who need hardware that fits their existing logic and budget.

Sourcing Your Replacement Drive via InstroDirect

Finding a reliable powerflex 4m replacement shouldn’t blow your maintenance budget. InstroDirect operates as a specialist sales arm for technical automation and engineers in Australia. We use a parallel importing model to secure the best prices. This strategy bypasses traditional distribution markups that often inflate local costs by 30% to 50%. All stock ships directly from our warehouse in Narangba, QLD. Fast shipping is our priority because industrial downtime costs money. We supply genuine Rockwell, Siemens, and Schneider Electric parts without the overhead of official channels.

Save Over 40% From Manufacturer RRP

Our business model focuses on volume and lower pricing. We source Allen-Bradley PowerFlex drives globally to ensure you get the best deal. You save more on site-wide 4M to 525 migration projects through our bulk buy options. Don’t wait for quotes. Access our online shop for real-time pricing and current stock levels. We provide amazing deals on genuine hardware. Our pragmatic approach means you get the parts you need at a fraction of the RRP.

Unbiased Support: Finding the Right Part

InstroDirect isn’t locked into one brand. This is a core benefit for our customers. We provide deep technical knowledge to help you cross-reference obsolete 4M codes to the latest 520-series stock. If Rockwell lead times exceed 12 weeks, we’ll suggest Schneider Altivar or Siemens Sinamics alternatives. We prioritize your uptime over brand loyalty. IF YOU CANT FIND IT RING US WE ARE HERE TO HELP. Our team understands the specific technical challenges faced by Australian engineers. Contact Us for immediate technical queries or help with your powerflex 4m replacement strategy. We are the no-nonsense, cost-effective alternative for your plant’s needs.

Future-Proof Your Control Panels Before 2026

The 2026 lifecycle deadline for the 4M series isn’t just a suggestion. It’s a hard cutoff for Australian facilities relying on legacy hardware. Transitioning to the 520-series ensures your logic and wiring remain compliant while gaining modern EtherNet/IP capabilities. You’ll need to map parameters accurately to maintain process integrity during the powerflex 4m replacement process. While the physical footprint changes, the technical advantages of the 525 series justify the migration effort.

InstroDirect isn’t locked into one brand. This independence means we source genuine Rockwell Automation hardware at prices that bypass traditional distribution markups. We ship fast from our QLD warehouse to any site in Australia. You’ll get the same high-spec components with expert Australian technical support to help with your commissioning. Stop overpaying for your automation hardware and start saving on your next project today. We’re here to help you find exactly what you need without the usual delays.

Shop PowerFlex 525 Drives – Save Over 40% RRP

Get your upgrade started now and keep your plant running at peak efficiency.

Frequently Asked Questions

Is the PowerFlex 4M obsolete?

Yes, Rockwell Automation moved the PowerFlex 4M to “Discontinued” status in 2021. This means the manufacturer no longer produces these units and technical support is limited. You should plan your powerflex 4m replacement now to avoid unplanned downtime. Instrodirect.com.au stocks the 520-series as the modern technical successor for these applications.

Can I replace a PowerFlex 4M with a PowerFlex 525 directly?

You can’t perform a direct 1:1 physical swap because the mounting holes and terminal layouts differ. A 525 drive requires a 25-ADAP-M1 adapter plate to match the legacy 4M footprint in your cabinet. Control wiring also changes because the 525 uses pluggable terminal blocks. Buy your 525 drives at Instrodirect.com.au to save over 40% from manufacturer RRP.

Do I need to change my PLC code when replacing a 4M with a 525?

Yes, you must update your I/O tree in Studio 5000 or RSLogix 500. The 525 uses a different Electronic Data Sheet (EDS) file and profile than the 4M. If you’re moving from Modbus RTU to EtherNet/IP, your logic needs significant changes to handle the new 32-bit data structures. Instrodirect.com.au provides the hardware you need without being locked into one brand.

What is the physical size difference between PowerFlex 4M and 520-series?

A PowerFlex 4M Frame A unit measures 174mm in height, while the 525 Frame A is shorter at 152mm. However, the 525 is deeper, measuring 172mm compared to the 4M’s 136mm depth. You must verify you have 36mm of extra clearance in your enclosure before starting a powerflex 4m replacement project. Check the technical specs on Instrodirect.com.au for exact dimensions.

Can I use my existing 4M communication module on a new 525 drive?

No, the older 22-COMM series modules aren’t compatible with the 520-series architecture. The PowerFlex 525 includes an integrated EtherNet/IP port as standard, so you likely won’t need an external card. If your network requires Profibus or DeviceNet, you’ll need to purchase 25-COMM-P or 25-COMM-D modules. We offer these at lower pricing than traditional Australian distributors.

Where can I find the cheapest PowerFlex replacement drives in Australia?

Instrodirect.com.au is the primary destination for the best prices on PowerFlex 525 and 523 drives. We use parallel importing to bypass traditional distribution markups, passing the savings directly to you. Technical automation engineers choose us because we aren’t locked into one brand. SAVE MORE on your next project by shopping our massive inventory online.

What software is required to program the PowerFlex 525?

Use Connected Components Workbench (CCW) or Studio 5000 for all configuration tasks. CCW is a free download and connects directly to the 525 via a standard USB cable. This is a massive improvement over the 4M, which required expensive 1203-USB converters or 22-HIM-A3 modules. Find all your programming hardware and drives at Instrodirect.com.au today.
