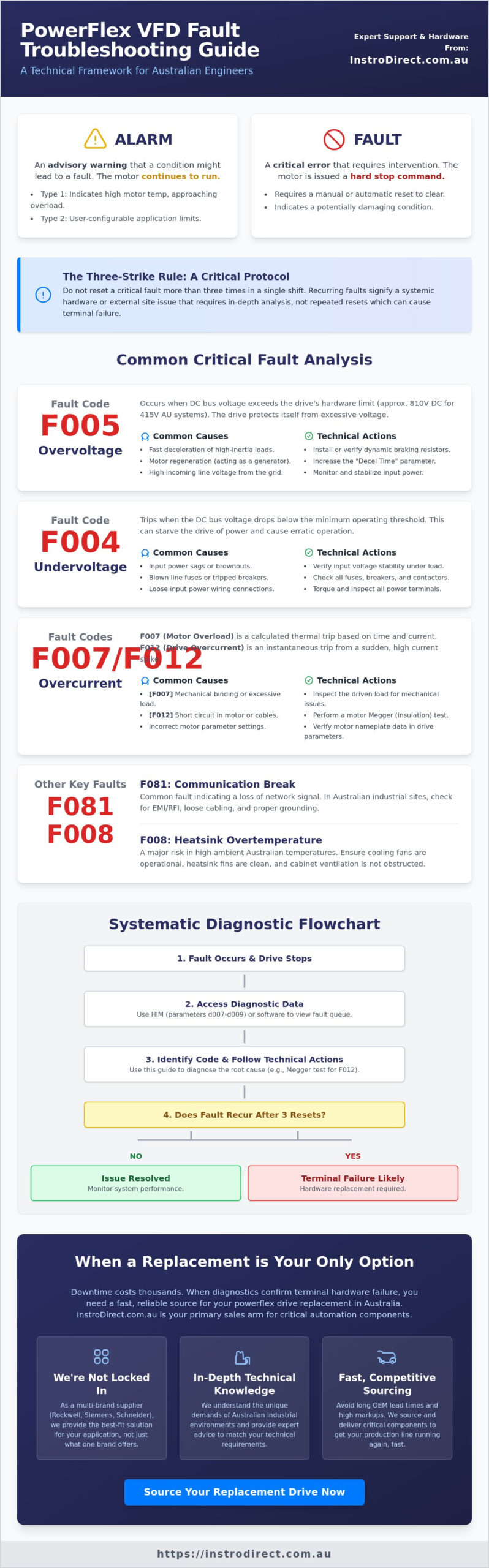

Decoding PowerFlex VFD Fault Codes: The Diagnostic Framework
Effective triage is the first step in industrial recovery. A Variable-frequency drive (VFD) provides specific feedback via its control interface to prevent catastrophic failure. For Australian engineers, understanding this diagnostic framework is the only way to avoid unnecessary downtime. If the drive is terminal, you need a reliable source for a powerflex drive replacement australia. InstroDirect.com.au provides these components at competitive prices, offering comprehensive technical solutions to keep your facility running efficiently.
The diagnostic architecture varies between the compact PowerFlex 525 and the modular 750 series. While the 525 is designed for simple machine-level integration, the 750 series offers advanced predictive diagnostics and more granular fault logging. Regardless of the model, you must follow the Three-Strike Rule: don’t reset a critical fault more than three times in a single shift. If the code recurs, the issue is likely hardware-related or a significant external site problem. Forcing a reset against a hard fault can turn a repairable issue into a total loss.
Fault vs. Alarm: Identifying System Urgency
PowerFlex drives distinguish between Alarms and Faults to help you prioritise repairs. Alarms are warnings. Type 1 alarms indicate a condition that might lead to a trip, such as high motor temperature or an approaching overload limit. Type 2 alarms are user-configurable and often relate to application-specific limits. Neither stops the motor immediately. Faults are hard stops. These require a manual or automatic reset after the condition is cleared. Never use the “Clear Fault” command to mask recurring issues. If a drive trips for F005 or F004 repeatedly, check your DC bus dynamics and input power stability before attempting another start.
Navigating the PowerFlex HIM and Software Tools
The Human Interface Module (HIM) is your primary diagnostic window. On a PowerFlex 525, use the arrow keys to navigate to the “d” (Diagnostic) group. View parameters d007 through d009 to see the most recent fault codes. The PowerFlex 750 series offers a more robust fault queue, storing the last 10 events with detailed timestamps. If the HIM display is blank, check the status LEDs on the control module. A steady red LED usually indicates a non-recoverable hardware fault. For deeper analysis, utilize compatible diagnostic software tools. These tools allow you to run real-time traces on DC bus voltage and output current. This data confirms if the issue is a transient line spike or internal component degradation. When diagnostics confirm the IGBTs or capacitors are gone, visit InstroDirect.com.au to source a powerflex drive replacement australia quickly. We focus on efficiency and value, ensuring your facility returns to full capacity without the typical authorised dealer delays.
Critical PowerFlex Faults: Analysing Overvoltage, Undervoltage, and Overcurrent
Critical faults demand immediate technical intervention to prevent hardware destruction. In Australian industrial environments, voltage fluctuations and regenerative loads are the primary drivers of VFD failure. When a drive trips, the HIM will display specific codes like F005, F004, or F012. These aren’t just suggestions; they indicate that the drive’s protective circuitry has stepped in to prevent a catastrophic event. Understanding these thresholds is vital before considering a powerflex drive replacement australia. Instrodirect.com.au provides the technical hardware you need when these protections finally fail. We aren’t locked into one brand, so we can suggest the most robust solution for your specific site conditions.
Managing DC Bus Stability and Voltage Trips
F005 (Overvoltage) occurs when the DC bus voltage exceeds the hardware’s internal limit. For standard 415V AU systems, this trip point is typically around 810V DC. This is frequently caused by fast deceleration of high-inertia loads, where the motor acts as a generator and pumps energy back into the drive. If your application involves frequent F005 trips, you must install dynamic braking resistors to dissipate this excess energy. Conversely, F004 (Undervoltage) indicates the DC bus has dropped below the minimum operating threshold, often due to input power sags or a blown branch circuit fuse. Always verify your input voltage tolerance during peak demand periods. If the local grid stability is poor, your PowerFlex drive is at constant risk of bus capacitor fatigue.
Overcurrent and Motor Protection Mechanics
Differentiating between F012 (Drive Overcurrent) and F007 (Motor Overload) is essential for accurate troubleshooting. F012 is an instantaneous trip. It often points to a short circuit in the motor leads or a failed IGBT within the drive itself. If this fault persists after disconnecting the motor, the drive hardware is likely compromised. F007 is a calculation based on the I2t algorithm. It means the motor has been drawing more than its rated current for too long. Check parameter P033 [Motor OL Current] to ensure it matches the nameplate of your motor. Precise protection settings prevent winding burnout and extend the life of your equipment.
F003 (Power Loss) and phase loss issues are common in aging Australian facilities. When troubleshooting these input-side problems, you must adhere to strict safety protocols. Refer to the official guide on Managing electrical risks in the workplace before opening any enclosures or testing live terminals. If your diagnostics confirm that the internal power components are dead, don’t wait for expensive OEM lead times. You can view our PowerFlex inventory for fast dispatch across Australia. Instrodirect.com.au is your primary sales arm for high-performance drives and PLCs, offering a pragmatic alternative to traditional distribution channels.
Advanced Troubleshooting: Communication Errors and Australian Environmental Factors
Communication losses halt production as effectively as a blown IGBT. In networked environments, F081 (Comm Loss) and F071 (Net Loss) are the most frequent network-related trips. These codes often indicate a break in the EtherNet/IP path or a configuration mismatch in the control hierarchy. If a communication card fails entirely, a powerflex drive replacement australia is usually the only path forward. Instrodirect.com.au stocks a wide range of PowerFlex 525 and 750 series drives to resolve these critical hardware failures. We aren’t locked into one brand. This allows us to provide technical alternatives that might better suit your specific network topology.
EtherNet/IP and Control Network Diagnostics
F081 specifically signals that the drive has lost its connection with the master controller. Start by testing the physical layer. Check for damaged RJ45 connectors or RFI interference from unshielded motor leads running parallel to data lines. In Studio 5000, verify that your IP address and subnet masking match the drive’s internal parameters exactly. Use the “Fault Action” parameters (typically P530 through P535) to define how the drive behaves during a network break. Setting these to “Stop” or “Hold Last” ensures a safe state. If you encounter F071, determine if the PLC or the VFD is the master. This code often appears when the drive’s internal logic doesn’t receive a heartbeat from the scanner within the expected RPI (Requested Packet Interval) window.
F122 (I/O Board Comm) is more severe. It indicates an internal communication failure between the main control board and the I/O module. This is rarely a software fix. It usually points to a seated connection issue or a component failure on the PCB. Before condemning the unit, reseat the control module and check for any visible signs of arcing or corrosion on the pins.
Environmental Stress: Heat and Dust in AU Facilities
Australian conditions are brutal on variable speed drives. F008 (Heatsink OvrTmp) is a common sight in Queensland and Western Australian facilities where ambient temperatures regularly exceed 40°C. High humidity in northern regions leads to internal circuit board condensation, while fine dust in mining applications clogs heatsink fins. You must implement a preventive cleaning protocol. Use dry, compressed air to clear the cooling channels every quarter. If your drive is installed in a high-heat zone, consider current derating or adding an external control module fan kit. The PowerFlex 525 can operate up to 70°C with proper derating, but constant heat accelerates capacitor aging.
Regional power surges also contribute to premature failure. Installing line reactors provides a vital buffer against these surges and reduces the harmonic distortion your drive injects back into the grid. When environmental stress leads to a terminal failure, Instrodirect.com.au is your primary destination for replacement hardware. We focus on value and efficiency, helping Australian engineers bypass long lead times from authorised dealers. Whether you need a 15kW PowerFlex 753 or a compact 525, we provide the technical parts required for a fast powerflex drive replacement australia.
Clearing Faults and Preventive Maintenance Protocols
Clearing a fault buffer is more than just pressing a reset button. It requires a systematic approach to ensure the underlying cause isn’t ignored. While a software reset via the HIM or CCW is convenient, some critical trips require cycling the 24V control power to re-initialise the processor. If the fault returns immediately, you are likely facing a hardware failure. At this stage, you must decide between repair and a powerflex drive replacement australia. Instrodirect.com.au is your primary sales arm for these components. We aren’t locked into one brand. This allows us to provide technical advice on whether a Rockwell unit or a Siemens alternative is the better financial choice for your facility.
Fatal faults like F048 (Params Defaulted) or F051 (Internal Comm) often indicate unrecoverable hardware degradation. Before condemning the drive, perform a No-Load test. Disconnect the motor leads and run the drive at a low frequency. If the drive trips without a load, the internal IGBTs or current sensors are failed. If it runs cleanly, the fault is external. Use a Megger to test the motor windings and cabling. Warning: Always disconnect the VFD from the motor before Megger testing. High-voltage insulation testers will destroy the drive’s output stage instantly.
Step-by-Step Reset and Recovery- Software Reset: Clear the fault queue via the HIM or through the controller tags in Studio 5000.
- Power Cycle: Remove all power, wait for the DC bus to discharge completely, then re-apply.
- Parameter Verification: Check parameter A530 [Boost Selection]. Incorrect torque boost settings can cause nuisance overcurrent trips during high-inertia startups.
If you are pulling a spare drive from long-term storage, you must reform the capacitors. Electrolytic capacitors degrade when left unpowered for over two years. Powering them up at full line voltage immediately can cause an internal short. Use a variable AC source to ramp the voltage up slowly over several hours to resurrect the dielectric layer safely.
Predictive Maintenance to Avoid Future Trips
Don’t wait for a trip to take action. Monitor the DC Bus ripple voltage through the diagnostic parameters. An increase in ripple is a leading indicator of drying capacitors. Use thermal imaging during peak production to inspect terminal connections. High-resistance joints at the input or output terminals are a major cause of F004 and F012 errors. Use our VSD ROI Calculator to evaluate if a repair is technically viable or if a powerflex drive replacement australia is the more cost-effective path. When hardware failure is inevitable, buy your replacement PowerFlex drives from Instrodirect.com.au for fast dispatch and competitive pricing.
Sourcing Replacement PowerFlex Drives in Australia
When technical diagnostics confirm a terminal hardware failure, your focus shifts from repair to procurement. Production downtime in Australian facilities is a massive overhead. You can’t afford to wait months for authorised distribution channels to process a backorder. A fast powerflex drive replacement australia is the only way to restore your system. Instrodirect.com.au operates as your primary sales arm, holding local stock to bypass the traditional supply chain bottlenecks that plague the industrial sector.
We aren’t locked into one brand. This independence is a core benefit for engineers. While we specialise in Rockwell Automation hardware, we also supply Siemens and Schneider Electric components. This allows us to provide the best technical fit and unbiased recommendations based on your specific application requirements rather than a manufacturer’s quota. If a PowerFlex unit isn’t available or suitable, we’ll source a compatible alternative that meets your technical specifications and budget.
The InstroDirect Advantage: Speed and Stock
Our local stock of Allen-Bradley PowerFlex Drives in QLD ensures rapid dispatch across the country. We understand that a 15kW or 75kW drive failure is a site emergency. By maintaining a high-information-density inventory, we provide immediate solutions for engineers who value speed and efficiency. For more context on system integration, refer to our Rockwell Automation in Australia guide. We focus on the transaction: getting the right part to your site at the best possible price.
Parallel Importing: Genuine Parts, Better Prices
Our business model utilizes parallel importing to source genuine Rockwell hardware at significant cost savings. This allows us to offer pricing often well below the manufacturer’s RRP. We are a no-nonsense, pragmatic supplier. By bypassing traditional distribution markups, we position ourselves as the smart choice for savvy buyers. Buying from an independent Australian wholesaler doesn’t mean compromising on quality; it means choosing a more resourceful procurement method.
All units we supply are genuine, new-in-box hardware. We explicitly state our status as an independent entity, which allows us to carve out a market niche focused on value and efficiency. Don’t let authorised dealer lead times dictate your production schedule. If you need a powerflex drive replacement australia today, Contact InstroDirect for immediate sourcing and competitive pricing. We solve the sourcing problem so you can get back to work.
