Product details

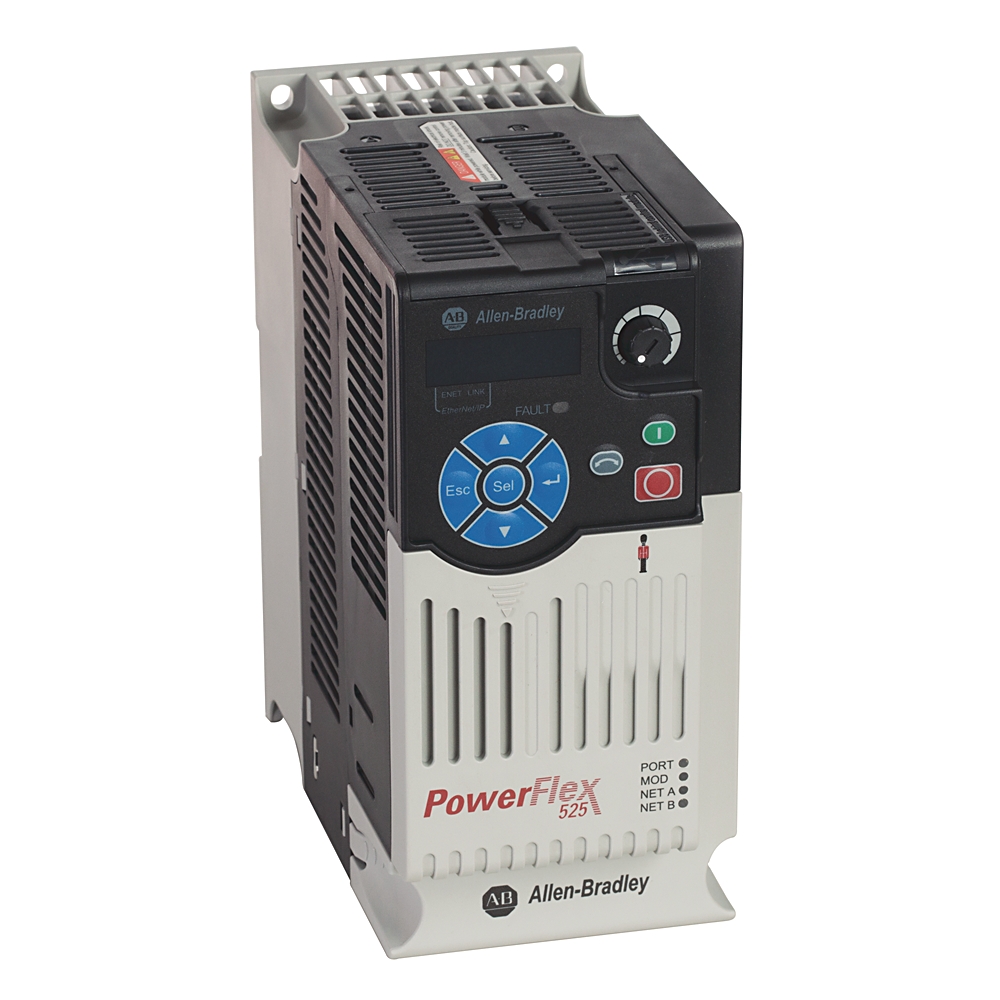

Rockwell Automation’s PowerFlex 525 variable speed drive in 0.75kW / 2.3A configuration (part 25B-D2P3N114) sets a new benchmark for compact drives in Australian industrial applications. Dual-port EtherNet/IP enables linear and Device Level Ring (DLR) topologies without an unmanaged switch, while on-board Safe Torque Off satisfies SIL 2 / PLe safety requirements without additional hardware.
Safe Torque Off (STO) to SIL 2 / PLe is provided as a standard hardware feature, with no software configuration required. The STO function prevents torque generation in the motor without removing main power from the drive, enabling faster restart after a safety event compared to traditional contactor-based isolation methods.
- Power: 0.75kW, current: 2.3A at 415V AC input
- Studio 5000 Add-On Profile (AOP) — native Logix integration
- Removable I/O terminal block for fast field drive replacement
- Linear EtherNet/IP daisy-chain — no switch required
- IP20 enclosure; optional DIN-rail or panel-mount
- Rockwell Automation part: 25B-D2P3N114
The 0.75kW PowerFlex 525 suits small motor applications in food processing, pharmaceutical manufacturing, and precision assembly where Safe Torque Off is required at the drive level without external safety relay hardware. Its compact size and DIN-rail mounting simplify panel design, and EtherNet/IP integration provides real-time fault visibility to the host PLC.
As a parallel importer, InstroDirect provides the PowerFlex 525 at prices well below the authorised distributor channel — same genuine Rockwell Automation product, lower cost. Australian stock, fast freight nationwide. Request a quote today.
