20G1AGC104JA0NNNNN: Technical Guide to the PowerFlex 755 55kW VSD

Why pay for Australian distributor markups of up to 50% when you can source the exact same 20g1agc104ja0nnnnn PowerFlex 755 drive for significantly less? You’ve likely faced the frustration of long lead times and opaque pricing from authorised channels that stall your projects. At InstroDirect, we aren’t locked into one brand. We focus on getting technical automation engineers in Australia the 400V AC, 104A Frame 6 hardware they need at global market prices.

This technical guide provides a deep dive into the 20g1agc104ja0nnnnn specs, clarifying the 55kW Normal Duty and 45kW Heavy Duty ratings to ensure your application remains within EN 61800-3:2018 standards. You’ll learn how to confirm compatibility for your specific 3-phase environment and avoid common procurement pitfalls. We also detail how the InstroDirect parallel import model provides a 25% to 40% saving compared to standard local pricing, ensuring you get the best deals and direct support.

Technical Breakdown of the 20G1AGC104JA0NNNNN Part Number

The 20g1agc104ja0nnnnn string serves as the definitive engineering manifest for this hardware. Within the Allen-Bradley ecosystem, the “20G” prefix identifies the high-performance PowerFlex 755 series. The digit “1” confirms it as an AC drive, while the “A” designates the IP54, NEMA 12 enclosure. This physical rating is a technical necessity for Australian sites where dust and moisture ingress threaten internal IGBTs. By choosing InstroDirect, you access this exact specification without the standard local markups often exceeding 30%.

Understanding the underlying Variable-frequency drive (VFD) architecture is critical for correct deployment. We aren’t locked into one brand, which means our technical data is focused solely on your application requirements. Sourcing via InstroDirect ensures you receive genuine hardware at global market rates, bypassing the traditional distribution tiers that inflate project costs.

Decoding the PowerFlex 755 Nomenclature

The “1AGC” segment provides granular hardware details. “1” represents the drive type, while “G” confirms the inclusion of an internal filter and a CM jumper. This is vital for managing electromagnetic interference in complex electrical networks. “C” identifies the Frame 6 physical architecture, which is a significant footprint designed for high-current throughput. Finally, the “NNNNN” suffix indicates a standard unit without factory-installed options like internal braking resistors or custom human interface modules (HIM), allowing for a clean slate for your specific field interface cards.

Core Electrical Specifications

The “J” voltage code signifies a 400V AC, 3-phase input, perfectly aligned with Australian 400/415V power grids. This unit handles standard voltage tolerances while maintaining a 104A continuous output current for Normal Duty tasks. For Heavy Duty cycles, the current is limited to 85A. The drive supports various motor control modes, including vector control with FORCE technology, providing precision across conveyors and high-inertia loads. Integration is handled via the built-in EtherNet/IP port, allowing for seamless data mapping to ControlLogix systems. This direct connectivity ensures real-time diagnostics are available to your engineering team without additional communication modules.

Normal Duty vs. Heavy Duty: Optimising Load Performance

Selecting the correct duty rating for the 20g1agc104ja0nnnnn determines the thermal lifespan of your installation. While the hardware specifications are fixed, the practical application of these ratings depends on your specific torque curve. Normal Duty (ND) provides 104A for centrifugal loads like pumps and fans. These applications rarely require high starting torque. If your process involves constant torque or high-inertia starts, you must switch to the Heavy Duty (HD) setting. This reduces continuous current to 85A but provides the necessary thermal headroom for cyclic peaks.

Overload capacity is the key differentiator. ND allows a 110% current surge for 60 seconds. HD increases this capacity to 150% for 60 seconds. In the heat of the Pilbara or Western Queensland, these percentages are your safety margin. Because this Frame 6 unit is IP54 rated, heat dissipation is restricted compared to open-chassis models. Ambient temperatures reaching 50°C inside unconditioned enclosures will trigger thermal de-rating. You must account for this by choosing the HD rating if your motor full-load current (FLC) is near the 85A threshold.

Application Examples for 55kW Normal Duty

Centrifugal pumps and standard HVAC fans are the primary candidates for the 55kW ND rating. At 415V, a typical 55kW motor draws approximately 95A. The 104A limit of the 20g1agc104ja0nnnnn handles this comfortably. This rating is ideal for conveyor systems where the load is consistent and starts are infrequent. It allows you to maximize the power of the Frame 6 hardware without paying for unused torque capacity.

When to De-rate to 45kW Heavy Duty

High-torque machines like crushers, mixers, and positive displacement pumps require the 45kW HD setting. These loads often face stalled conditions or high-inertia starts that pull 150% torque. The drive’s firmware prioritizes torque stability in this mode. At InstroDirect, we provide the technical expertise to help you calibrate these duty cycles for your specific site. We aren’t locked into one brand. This independence ensures you get an unbiased assessment of whether this PowerFlex unit or a different manufacturer’s VSD fits your project KPIs. You can buy PowerFlex drives online and save up to 40% through our parallel importing model.

Frame 6 Physical Characteristics and IP54 Protection

The 20g1agc104ja0nnnnn is a Frame 6 powerhouse that demands respect during installation. It weighs approximately 101 kg (223 lbs). This isn’t a drive you can simply manhandle into position; it requires dedicated lifting gear and reinforced mounting surfaces. The IP54 (NEMA 12) enclosure is the defining characteristic of this specific unit. While standard IP20 drives are common in clean rooms, they fail quickly in the dust-heavy environments of Australian mining or regional manufacturing sites. IP54 provides the necessary protection against dust ingress and splashing water from any direction, making it a rugged choice for harsh locations.

Heat management for a sealed Frame 6 unit is a technical priority. Because the IP54 enclosure limits natural convection compared to open-chassis models, internal fans must move air efficiently through the heat sink. You must maintain a minimum clearance of 152.4 mm (6 inches) at both the top and bottom of the unit to prevent thermal tripping. Detailed mounting requirements and airflow specifications are found in the PowerFlex 755 Technical Data. At Instrodirect.com.au, we emphasize these specs because we know that a 45°C Australian summer will test the limits of your thermal design.

Environmental Resilience in Australian Industry

Operating temperatures for the 20g1agc104ja0nnnnn range from -20°C up to 60°C, though current de-rating is mandatory once ambient air exceeds 40°C for IP54 models. This resilience is vital for facilities in the Pilbara or the Hunter Valley where seasonal extremes are the norm. This specific part number includes a built-in Dynamic Braking (DB) transistor. This internal component allows for rapid deceleration of high-inertia loads without the need for an external chopper module, saving significant cabinet space and reducing installation complexity.

Installation and Maintenance Access

Maintenance on a Frame 6 drive is simplified by a modular control pod. The pod can be swung out or removed entirely to provide clear access to the power terminal blocks. Cable entry is managed through a removable gland plate at the base of the unit. This allows your team to pre-drill for specific conduit sizes or multi-core cables before the drive is even on the wall. If you have questions about the structural integrity needed for a 100kg installation, you can consult our experts for installation support.

Instrodirect.com.au isn’t locked into one brand. We provide unbiased technical solutions and the best prices on genuine Rockwell hardware through our parallel importing model. We bypass the standard 30% to 50% Australian distributor markups, ensuring you get the hardware you need for less.

Control Integration and Communication Protocols

Control integration for the 20g1agc104ja0nnnnn revolves around its embedded EtherNet/IP port. This isn’t just a basic communication interface; it’s the foundation for Premier Integration within the Rockwell ecosystem. Engineers can configure the drive directly inside Studio 5000 software, which eliminates the need for separate commissioning tools. The drive also supports DeviceLogix, an on-board control technology that allows for local logic execution. This is particularly useful for simple interlocking or autonomous stop sequences that must function even if the main network connection is interrupted.

Safety is another technical priority for this Frame 6 unit. The 20g1agc104ja0nnnnn supports Safe Torque Off (STO) as a standard or optional feature, depending on the specific control module used. This function meets SIL3, PLe, and Cat 4 requirements, allowing you to remove power from the motor without disconnecting the drive from the main supply. It reduces the need for external safety contactors and simplifies the overall wiring of your control panel. When compared to Siemens SINAMICS or Schneider Altivar architectures, the PowerFlex 755 often wins on ease of PLC-to-VSD data mapping within Australian plants already running Rockwell backbones.

EtherNet/IP and Studio 5000 Workflow

The use of Add-on Profiles (AOP) in Studio 5000 significantly reduces engineering hours. Instead of manually mapping hundreds of input and output bits, the AOP provides named tags for speed, torque, and diagnostics. You get real-time access to predictive maintenance data, such as fan life and heatsink temperature, directly in your PLC code. This data is critical for reducing unplanned downtime in remote Australian sites. To maximize your system’s performance, learn more about Rockwell PLCs and how they interface with the 755 series.

The Benefit of Brand-Agnostic Sourcing

Instrodirect.com.au isn’t locked into a single manufacturer. While the 20g1agc104ja0nnnnn is a top-tier choice, we also evaluate it against alternatives like the Schneider Altivar Process series or Siemens S120 drives. Our goal is to provide the best technical fit for your specific project KPIs, whether that’s lead time, price, or specific motor control algorithms. We act as your sales arm, using parallel importing to bypass the standard 30% to 50% distributor markups. This ensures you get genuine, high-performance hardware at a price that reflects the global market value rather than inflated local rates.

If you’re looking for the best deals on industrial automation, shop our full range of PowerFlex drives today and see the savings for yourself.

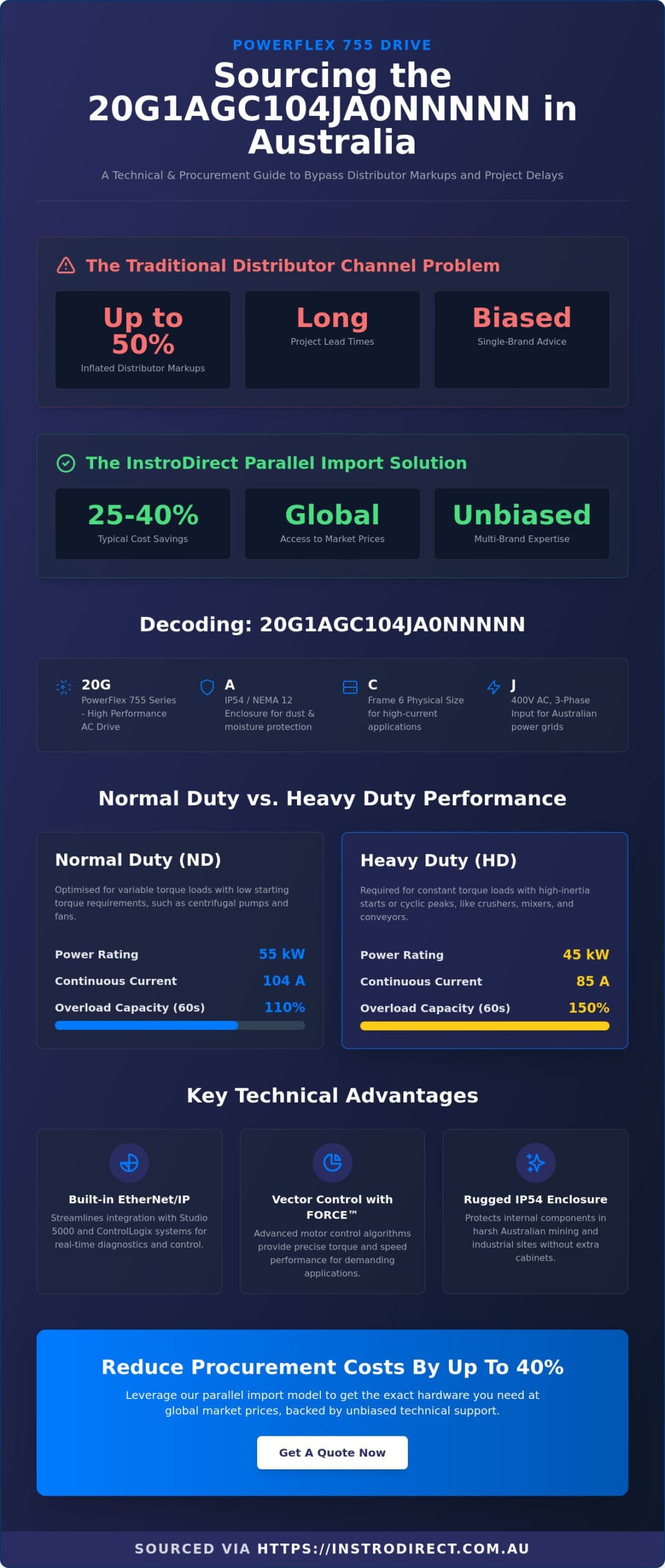

Sourcing the 20G1AGC104JA0NNNNN in Australia

Sourcing the 20g1agc104ja0nnnnn in Australia traditionally involves navigating distributor tiers that inflate prices by 30% to 50% compared to international markets. While most local suppliers hide their pricing behind “Request a Quote” buttons, Instrodirect.com.au provides a more transparent, transactional experience. We bypass artificial markups by using a legal parallel import model to source genuine, factory-new PowerFlex 755 drives. This specific unit remains in the “Active” lifecycle phase as of May 2026. This status ensures your investment is protected by long-term spare parts availability and the latest firmware updates. Every drive we sell is verified for authenticity, giving you the same high-performance hardware without the “Australia tax.”

Why InstroDirect is the Sales Arm for Savvy Engineers

Authorized channels often quote lead times of 12 to 24 weeks for Frame 6 hardware. We use a direct import model to slash these wait times, keeping your critical spares in reach. We aren’t locked into one brand. This independence allows us to provide unbiased technical advice. If the 20g1agc104ja0nnnnn isn’t the fastest or most cost-effective path for your specific motor, we’ll tell you. You can shop the full PowerFlex range online to check current stock and pricing. IF YOU CANT FIND IT RING US WE ARE HERE TO HELP. Our technical support team is available via phone to assist Australian techs with configuration and troubleshooting.

Calculating Your ROI on VSD Upgrades

Controlling a 55kW motor with a VSD isn’t just about speed; it’s about energy ROI. Centrifugal loads like fans and pumps follow affinity laws where a 20% reduction in speed can lead to nearly 50% energy savings. You can quantify these benefits using our VSD ROI Calculator to build a solid business case for procurement. The PowerFlex 755 series offers a superior Total Cost of Ownership (TCO) due to its modular architecture. Components like the cooling fans and the control pod are field-replaceable. This reduces mean time to repair (MTTR) and extends the service life of the unit in demanding Australian industrial environments. Choosing Instrodirect.com.au means you save on the initial purchase and the long-term operation of your plant.

Optimise Your Industrial Power with Strategic VSD Sourcing

Success with the 20g1agc104ja0nnnnn depends on matching its 104A current capacity to your specific torque profile and the harsh Australian thermal environment. You now have the technical data to distinguish between Normal Duty and Heavy Duty requirements. This ensures your Frame 6 installation remains stable during 40°C+ summer peaks. By leveraging the IP54 enclosure and integrated safety features, you reduce the need for complex external cabinets and redundant hardware. These technical advantages directly impact your facility’s uptime and maintenance budget.

Instrodirect.com.au is your primary destination for genuine Rockwell hardware without the standard 30% to 50% distributor markups. We aren’t locked into one brand; we provide the unbiased recommendations your project needs. Our parallel importing model delivers significant cost savings while maintaining high technical standards and local Australian support. Don’t let long lead times stall your automation upgrades.

Buy the 20G1AGC104JA0NNNNN Online – Save on Manufacturer RRP

Get the technical performance you need at a price that makes sense for your bottom line. We are here to help you source the right parts for your next project.

Frequently Asked Questions

Is the 20G1AGC104JA0NNNNN suitable for outdoor installation?

No, this drive isn’t rated for direct outdoor exposure. While the IP54 enclosure protects against dust and splashing water, it doesn’t withstand direct rain or UV radiation. You must install the 20g1agc104ja0nnnnn within a secondary outdoor-rated cabinet or under a weather shield to prevent thermal stress and seal degradation in Australian conditions.

Does this model include a built-in braking resistor?

This model includes a built-in Dynamic Braking (DB) transistor, but it doesn’t include the resistor itself. You must size and purchase an external braking resistor based on your specific deceleration torque requirements. Instrodirect.com.au can help you source the correct resistor for your 55kW or 45kW application to ensure safe energy dissipation.

Can I use this drive with a permanent magnet motor?

Yes, the PowerFlex 755 architecture supports permanent magnet (PM) motor control. This includes both surface-mount and interior PM motors. The drive uses advanced motor control algorithms to provide precise torque at low speeds, making it a versatile choice for more than just standard induction motors in modern automation lines.

What is the standard warranty for parallel imported Rockwell parts?

InstroDirect provides a 12-month replacement or repair warranty on all parts, which matches the standard manufacturer duration. Because we operate as an independent supplier in Australia, we handle the warranty process locally. This ensures you don’t face the long delays often associated with traditional authorized distribution channels.

How do I verify the lifecycle status of an Allen-Bradley drive?

You can verify the status by entering the 20g1agc104ja0nnnnn into the Rockwell Automation Product Selection Toolbox. As of May 2026, this specific unit is listed as “Active.” This status confirms the drive is in full production with long-term spare parts availability and technical support guaranteed for years to come.

What is the difference between IP54 and IP66 for VSDs?

IP54 provides protection against limited dust ingress and water splashes, which is the NEMA 12 equivalent. IP66 is “dust-tight” and protects against high-pressure water jets used in heavy washdown environments. For most Australian mining and industrial sites, the IP54 rating of this PowerFlex unit is sufficient unless the mounting location is subject to direct hosing.

Can InstroDirect provide technical support for programming this unit?

Yes, InstroDirect offers phone-based technical support for programming and commissioning. We focus on the practical needs of Australian engineers. If you’re struggling with Studio 5000 Add-on Profiles or DeviceLogix configuration, ring us directly. We aren’t locked into one brand, so we understand how these units integrate into multi-brand ecosystems.

Does the 20G1AGC104JA0NNNNN support Safe Torque Off (STO)?

This drive supports Safe Torque Off (STO) as a core safety function. It allows your system to meet SIL3, PLe, and Category 4 safety standards. STO ensures the motor can’t restart while the safety circuit is open, providing a reliable way to protect personnel without the need for redundant external power contactors.
