Rockwell ControlLogix Power Supply: Technical Selection & Supply Guide (2026)

Paying full manufacturer RRP for a rockwell controllogix power supply doesn’t guarantee a faster commission date or better system reliability. You’ve likely faced the 22 week lead times and steep markups that currently plague traditional Australian distribution channels. It’s frustrating when a single 1756-PA72 module becomes the primary bottleneck for a multi-million dollar project timeline.

At Instrodirect.com.au, we understand that technical automation professionals need parts, not excuses. We aren’t locked into one brand, which allows us to provide unbiased technical advice focused on your specific rack requirements rather than manufacturer sales quotas. This guide delivers a technical deep dive into 1756-PA and 1756-PB module selection, clearing up the persistent confusion regarding Series A, B, and C hardware compatibility.

You’ll learn how to calculate precise backplane power consumption, configure 1756-PSCA2 redundancy modules for high availability, and leverage parallel importing to secure genuine Rockwell components at prices significantly lower than standard Australian list rates. We’re here to help you bypass the supply chain gatekeepers and source the exact hardware your system demands.

Understanding the Role of ControlLogix Power Supplies in 1756 Chassis

The rockwell controllogix power supply is the critical heartbeat of any 1756 system. It converts incoming line voltage, typically 120/240V AC or 24V DC, into the regulated DC voltages required by the backplane. These modules provide 1.2V, 3.3V, 5.1V, and 24V DC directly to the chassis pins. Without a stable supply, your Programmable Logic Controller (PLC) will suffer from intermittent backplane communication errors or total CPU halts.

In Australian industrial environments, these modules are frequently the first point of failure. Ageing plants in regions like the Hunter Valley or the Pilbara face harsh conditions. High ambient temperatures and dust ingress often lead to capacitor degradation in units that have been running 24/7 for over 15 years. Instrodirect.com.au acts as the primary sales arm for engineers needing rapid replacements to avoid costly downtime. We aren’t locked into one brand, which allows us to offer the best technical solutions across the entire 1756-A4, A7, A10, A13, and A17 chassis range.

The 1756 Series Architecture

The ControlLogix platform remains the flagship line for Rockwell Automation. Every 1756 chassis requires a power supply mounted specifically to the left-hand side. This physical orientation is fixed across all sizes, from the compact 4-slot A4 to the massive 17-slot A17. When sourcing a rockwell controllogix power supply, you must check the “Series” revision. Series A, B, and C hardware often feature different internal components or efficiency ratings. Older Series A units are becoming increasingly scarce in the Australian market. Instrodirect.com.au provides technical depth on these revisions to ensure your new module is compatible with your existing rack hardware.

Backplane Power vs. Field Power

Technical clarity is vital here: 1756 power supplies do not power your field devices. They are strictly for backplane logic. You must calculate the current draw for every processor, I/O module, and communication card in your rack to ensure you don’t exceed the supply rating. If you’re driving 24V DC solenoids or 4-20mA loops, you need separate external bulk power supplies. For backplane calculations, the 1756-PA72 module provides a capacity of 10 Amps at 5.1V, 2.8 Amps at 24V, and 13 Amps at 3.3V. For the best prices and technical support on these components, visit our ControlLogix product category. We focus on value and efficiency, helping you save on essential automation hardware.

Technical Specifications: AC vs. DC Input and Load Balancing

Selecting the correct rockwell controllogix power supply depends on your chassis size and the specific current draw of your I/O modules. Engineers shouldn’t just pick the highest amperage available. Over-specifying leads to unnecessary heat, while under-specifying causes intermittent processor resets. Precise calculation of the 1.2V, 3.3V, 5.1V, and 24V DC backplane rails is mandatory. According to the ControlLogix Power Supplies Technical Data, the power supply must balance these loads to maintain system integrity.

The 80% rule is a standard safety margin for Australian industrial environments. Never load a power supply beyond 80% of its rated capacity. If your total calculated draw is 60 Watts, install a unit rated for at least 75 Watts. This headroom accounts for component aging and high ambient temperatures in uncooled Australian electrical cabinets. InstroDirect provides technical parts for these demanding builds without the high markups of traditional distributors. We aren’t locked into one brand, which means we focus on the best technical fit for your specific panel layout.

• Inrush Current: Most ControlLogix supplies have a peak inrush of 20A to 40A.
• Circuit Breakers: Use C-Curve or D-Curve breakers to prevent nuisance trips during initial power-up.
• Mounting: Always mount the supply on the left side of the 1756 chassis.

1756-PA72 and 1756-PA75 (AC Power)

The 1756-PA75 is the primary choice for Australian 240V grids. It handles an input range of 85-265V AC at 47-63 Hz, making it perfectly compatible with our 50Hz standard. This 13A module delivers high-density power for large 17-slot chassis. It generates roughly 102.3 BTU/hr in heat dissipation. You must factor this into your cabinet’s thermal load. If you’re running multiple PA75 units in a single enclosure, active cooling is often required to prevent the internal temperature from exceeding the 60°C operating limit.

1756-PB72 and 1756-PB75 (DC Power)

Remote sites or battery-backed systems require the 1756-PB75. This module operates on 18-32V DC. It’s the standard for 24V DC control circuits common in mining and infrastructure projects. A key feature is the 1000V AC isolation. This protects your processor from ground loops and external electrical noise. The PB75 provides 13A at 5.1V DC to the backplane, ensuring even the most power-hungry communication modules stay online. Shop the ControlLogix range at InstroDirect for competitive pricing on these essential DC modules. If you’re looking for better value on your next project, check our latest stock for immediate dispatch across Australia.

Redundancy vs. Standard Power Configurations

Standard configurations suit non-critical lines where a 20-minute shutdown for a module swap won’t derail your daily production targets. In these setups, a single rockwell controllogix power supply mounts directly to the left side of the 1756 chassis. It’s a simple, space-saving solution for secondary packaging or standalone test rigs. However, if you’re managing a 24/7 operation in the Australian mining or water sectors, the risk profile shifts. An unplanned CPU halt can cost upwards of A$60,000 per hour in lost production. In these scenarios, redundant power isn’t an option; it’s a requirement.

Redundant systems use two 1756-PA75R or 1756-PB75R supplies wired in parallel. They don’t attach to the backplane directly. Instead, they feed a 1756-PSCA2 chassis adapter. This configuration ensures that if one supply loses a phase or suffers an internal component failure, the secondary unit maintains the 1.2V, 3.3V, 5V, and 24V DC rails without a millisecond of interruption. InstroDirect provides these high-availability components at lower pricing through parallel importing, giving you Tier-1 reliability without the inflated local markups. We aren’t locked into one brand, so we focus on the hardware that actually keeps your site running.

The 1756-PSCA2 Redundant Power Chassis Adapter

This module acts as the physical and electrical bridge between two external supplies and the ControlLogix backplane. It’s a passive device, meaning it doesn’t consume a slot or backplane current itself. The adapter features clear visual indicators for “Power OK” status for both the primary and secondary sources. Maintenance is straightforward. You can hot-swap a failed 1756-PA75R supply while the system stays live. This removes the need for midnight call-outs to perform emergency shutdowns just to replace a power module.

Configuring Redundant Systems

System designers must use 1756-CPR2 cables to connect the supplies to the 1756-PSCA2 adapter. These cables have a strict 0.91-metre length limit to prevent voltage drop. If you exceed this distance, the backplane voltage may fall out of spec, causing intermittent controller resets. Beyond the physical wiring, you should integrate diagnostic tags into your Studio 5000 logic. By monitoring the Local:X:I.PowerSupplyReady tags, your SCADA system can alert technicians the moment one supply fails. This proactive approach prevents a “hidden failure” where the system runs on a single supply for weeks until the second one eventually dies. For more context on how these power components support the broader automation architecture, see this What is a PLC? technical guide.

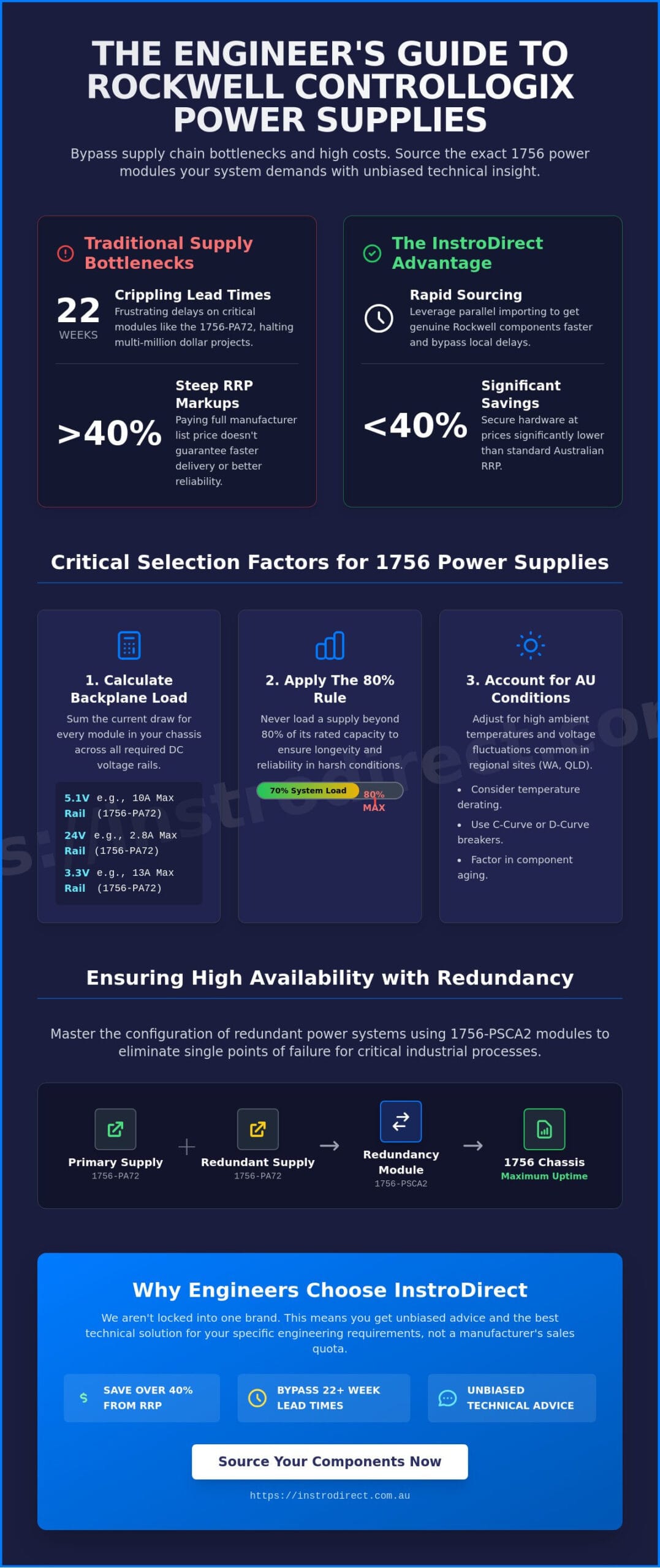

Critical Selection Factors for Australian Industrial Environments

Australian summer conditions demand more from a rockwell controllogix power supply than standard European or North American specifications suggest. In regions like the Pilbara or Central Queensland, internal cabinet temperatures frequently peak above 55°C. High heat accelerates the aging of electrolytic capacitors and reduces the maximum current the unit can safely deliver to the backplane. Ignoring these local factors leads to nuisance trips and expensive downtime during peak production months.

Environmental Derating Curves

Power supplies aren’t static devices; their output capacity drops as ambient temperature rises. A standard 1756-PA75 unit rated for 13A at 5V DC might only provide 10A once the internal enclosure air hits 60°C. This 23% drop in performance is critical. If your backplane load is calculated at 12A based on room temperature specs, the system will fail in mid-January. Always size your supply with a 25% safety margin for Australian sites. Ensure cabinet fans are positioned to pull cool air across the bottom of the chassis and exhaust heat from the top. Dust-clogged filters are the primary cause of PSU burnout in Western Australian mining operations.

Voltage Fluctuations and Regional Reliability

Power quality in regional QLD and WA is often inconsistent. Long distribution lines lead to frequent voltage sags and “brownouts” that stress the switching circuitry of the rockwell controllogix power supply. While the 1756-PA72 is designed for 120/240V AC, consistent fluctuations outside the ±10% range will shorten the unit’s lifespan by roughly 35% over three years. For sites with poor grid stability, moving to a 24V DC input model like the 1756-PB75 paired with a stabilized industrial DC source is a more robust engineering choice. It isolates the sensitive ControlLogix backplane from mains transients.

The “Series” trap is another common failure point for Australian engineers. Hardware revisions (Series A, B, or C) often have different firmware requirements or physical internal components. Mixing a Series B power supply with an older Series A chassis can occasionally cause mechanical fitment issues or grounding inconsistencies. Always verify the full part number and series letter on the side label before installation.

Sourcing in Australia: Availability and Lead Times

Sourcing ControlLogix hardware through traditional channels in Australia often results in 16-to-24-week lead times. Being “Authorized” doesn’t mean a distributor has a 1756-PA75 sitting on a shelf in Melbourne or Perth. InstroDirect uses parallel importing to bypass these local supply chain bottlenecks. We aren’t locked into one brand. This independence allows us to source genuine hardware globally and get it to your site faster. If you can’t find the specific revision you need, contact us for stock checks immediately. We prioritize getting your plant back online without the typical corporate delays.

Sourcing Rockwell Automation Parts: Why InstroDirect is the Engineer’s Choice

Procuring a rockwell controllogix power supply shouldn’t drain your entire maintenance budget. InstroDirect functions as the primary sales destination for Australian engineers who demand genuine hardware without the inflated local markups. We operate through a parallel importing model, sourcing factory-new components from global markets where pricing is more favorable. This direct approach allows us to offer AMAZING DEALS, often resulting in a SAVE OVER 40% FROM MANUFACTURER RRP on essential ControlLogix modules and power hardware.

Our team isn’t locked into a single brand. While this guide focuses on Rockwell, we provide unbiased technical solutions across Siemens, Schneider Electric, and Allen-Bradley. We prioritize the best technical fit for your specific rack configuration rather than pushing a specific corporate agenda. For a broader look at the local ecosystem, consult this Rockwell Automation Australia Guide to understand how these parts integrate into the national industrial landscape.

Genuine Parts, Better Pricing

Fast Shipping and Local Support

Waiting weeks for international air freight isn’t an option for critical infrastructure. We maintain a warehouse in Narangba, QLD, to ensure rapid dispatch across Australia. Whether you are in the Pilbara or the Hunter Valley, our local presence reduces shipping times significantly compared to ordering through standard international channels. Our support isn’t a generic call center. You speak with people who understand PLC backplanes and current requirements. IF YOU CANT FIND IT RING US WE ARE HERE TO HELP.

• Direct Technical Assistance: We help verify part number compatibility for 1756-PA72, PB72, and redundant configurations.
• Fast Dispatch: Stocked items ship directly from our Queensland facility.
• Transparent Savings: Clear A$ pricing with no hidden import fees.

Don’t let high overheads stall your next upgrade. You can browse all Rockwell Power Supplies at InstroDirect to see our current inventory. If your specific module isn’t listed, contact us directly for a custom quote. Our goal is to keep your plant running with the best hardware at the lowest possible price point in Australia.

CANT FIND WHAT YOUR LOOKING FOR? CONTACT US DIRECTLY: Get a Quote Now

Secure Your 1756 Chassis Reliability and Save Today

Selecting the right rockwell controllogix power supply involves more than matching input voltages. You must calculate backplane current requirements for every 1756-L8 series controller and I/O module in your rack. High-demand Australian industrial environments often require 1756-PA75R redundancy to prevent downtime during critical process cycles. InstroDirect offers these genuine new-in-box units at lower pricing via parallel importing. We aren’t locked into one brand. This independence allows us to focus on your specific technical needs and site specifications rather than manufacturer quotas. You get the exact hardware required for your 2026 system upgrades without the standard markup.

IF YOU CANT FIND WHAT YOUR LOOKING FOR CONTACT US DIRECTLY. Our technical experts are ready at 07 3325 3154 to assist with part selection or load balancing queries. We prioritize efficiency and cost-savings for every Australian engineer. Stop paying premium rates for essential industrial hardware when you can access the same genuine parts for less. Trust the pragmatic choice for your automation spares and project builds.

SAVE OVER 40% ON GENUINE ROCKWELL POWER SUPPLIES – SHOP NOW

Frequently Asked Questions

What is the difference between 1756-PA72 and 1756-PA75?

The primary difference is the output current capacity. The 1756-PA72 provides 10 Amps at 5.1V DC, while the 1756-PA75 delivers 13 Amps at the same voltage. Both units accept 120/240V AC input. For high-density racks with multiple communication modules, the PA75 is the standard choice. Instrodirect.com.au stocks both models to ensure you get the exact capacity needed without overpaying for unused overhead.

Can I mix different series of power supplies in a redundant ControlLogix rack?

No, you can’t mix different models in a redundant configuration. Redundant setups using the 1756-PSCA2 chassis adapter require two identical power supplies, such as two 1756-PA75R units. Mismatched supplies can lead to uneven load sharing and system instability during a failover event. If you’re looking to save on a redundant rockwell controllogix power supply, we offer bulk pricing on matching pairs.

Why is my ControlLogix power supply LED flashing red?

A flashing red LED indicates a power supply fault, often caused by an overvoltage or overcurrent condition on the backplane. This usually happens if a module has failed or if the total current draw exceeds the supply’s rating. Check your chassis for 1756-series modules that might be shorting the 5.1V or 24V rails. Instrodirect.com.au provides technical support and rapid replacements to minimize your site downtime.

Does the 1756 power supply provide power to the I/O modules?

It provides logic power to the modules through the backplane at 1.2V, 3.3V, 5.1V, and 24V DC. It doesn’t provide field-side power for your sensors or actuators. You’ll still need a separate external 24V DC power supply for field device loops. Instrodirect.com.au isn’t locked into one brand, so we can supply both Rockwell backplane units and cost-effective external supplies from other manufacturers.

How do I calculate the power requirements for a full 17-slot ControlLogix chassis?

You must sum the backplane current draw for every module using the 1756-TD001 technical data sheet. A full 17-slot chassis with multiple 1756-EN2T cards often exceeds 10 Amps on the 5.1V rail, requiring a 1756-PA75. Use Rockwell’s Integrated Architecture Builder (IAB) software for a precise calculation before buying. Our team at Instrodirect.com.au can review your BOM to ensure your rockwell controllogix power supply choice is technically sound.

Is InstroDirect an authorized Rockwell distributor in Australia?

InstroDirect is not an authorised distributor in Australia; we’re an independent parallel importer. This independent status is a core benefit because we aren’t restricted by brand-specific sales quotas. We focus on getting you the best price and fastest delivery on genuine parts. Australian engineers choose us for lower pricing and the ability to source across multiple brands without bias.

What is the standard warranty on parallel imported Rockwell parts?

Every part sold by Instrodirect.com.au comes with a 12-month replacement warranty. We handle all warranty claims locally in Australia, so you don’t have to deal with complex international returns. This guarantee ensures you get the same reliability as local retail channels but at a significant cost saving. Our business model focuses on value and efficiency for technical automation professionals.

Can I use a 1756-PB75 with a standard Australian 240V outlet?

No, connecting a 1756-PB75 to a 240V AC outlet will destroy the unit. The 1756-PB75 is strictly a 24V DC input power supply designed for battery-backed or DC-only systems. For standard Australian 240V AC mains, you must use the 1756-PA75 or 1756-PA72 models. If you’ve ordered the wrong voltage, contact Instrodirect.com.au immediately to swap it for the correct AC-input version.
