Cryogenic Process pH Sensor — Low-Temperature Operation

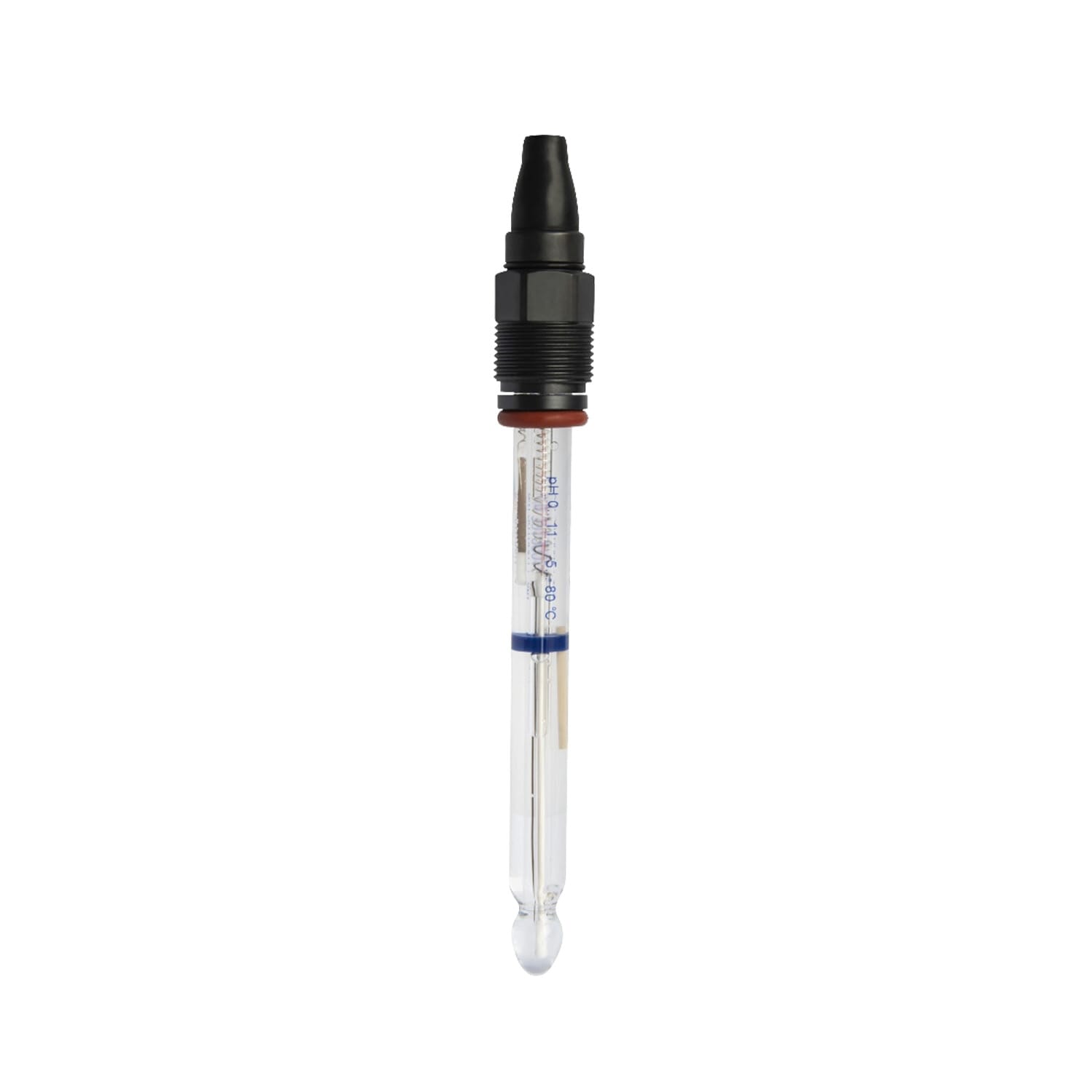

The InstroDirect IDH-J301-CR Cryogenic Process pH Sensor – −20°C Low-Temperature is a specialised cryogenic pH electrode rated for continuous operation down to −20 °C. Uses a low-temperature glass formulation and antifreeze electrolyte in the reference system to maintain electrochemical function where standard electrolytes freeze and the glass bulb becomes brittle.
Technical Specifications
| Parameter | Specification |
|---|---|
| Measuring range | 0 – 11 pH |
| Temperature range | −25 – 80 °C |
| Max Pressure | 6 Bar |
| Bulb Type | Low impedance glass |
| Reference type | Long life reference |
| Outer Salt Bridge | Ceramic hole |
| Reference solution | Gel |
| Temperature Sensor | PT1000 |
| Interface Type | Cab, VP6, S8 |
| Electrode length | 120 mm |
| Mounting Thread | PG13.5 |
Typical Australian Applications
- Frozen food processing rinse water
- Refrigerated dairy CIP
- Glycol-cooled process water
- Pharma cold storage pH control
- Cold-room condensate neutralisation
- Brine and calcium chloride cooling loops
Why Engineers Choose the IDH-J301-CR
- Sub-zero operation is a very small niche — limited supplier choice in Australia
- Low-temperature glass formulation is linear down to −20 °C
- Antifreeze electrolyte prevents reference cell freezing
- Robust for refrigerated-plant environments
Installation & Calibration
Insulate the cable against cable brittleness. Warm to > 0 °C before calibration with standard buffers.
Frequently Asked Questions
Do I need special calibration below 0 °C?
Calibrate at room temperature then verify sensor response at process temperature. Accuracy at sub-zero is ±0.05 pH vs ±0.02 pH at ambient.
Australian Technical Support & On-Site Calibration
- Australian field engineers with 20+ years of industrial automation experience — phone and email support during AEST business hours.
- On-site pH calibration service across QLD, NSW, VIC — two-point buffer calibration (pH 4 / 7 / 10) with formal calibration certificate.
- Sensor health diagnostics — slope, offset, glass impedance, and reference junction checks.
- Replacement electrodes and buffer solutions available from InstroDirect’s broader water-analysis range.
Why InstroDirect vs Endress+Hauser or HACH in Australia
InstroDirect supplies the same grade of pH sensor that Australian councils, WWTP integrators, pharma plants, and food & beverage operators specify from Endress+Hauser (CPS11D, CPS31D, CPS41D, CPS71D) and HACH (pHD, Differential pH) — at a significantly lower landed cost and without vendor lock-in.
| Factor | InstroDirect | Endress+Hauser / HACH |
|---|---|---|
| Digital protocol | Open RS485 Modbus RTU — integrates with Allen-Bradley, Siemens, Schneider, Beckhoff, or any SCADA | Proprietary Memosens / HACH SC — locked to the vendor’s transmitter |
| Technical support | Australian field engineers with 20+ years automation experience | Offshore ticket queue or authorised distributor |
| On-site calibration | InstroDirect service across QLD, NSW, VIC with formal certificate | Third-party authorised service network, longer turnaround |
| Price | Parallel-import, no distributor margin stack — typically 30–50% below equivalent E+H / HACH pricing | Premium brand with distributor markup |
| Replacement parts | Standard glass-bulb and reference cartridges | Proprietary Memosens head, tied to the brand |
Moving away from Memosens or SC digital protocols frees you to mix and match sensors with any Modbus-capable transmitter or PLC. InstroDirect pH electrodes drop straight into an existing control system without a new proprietary transmitter.
