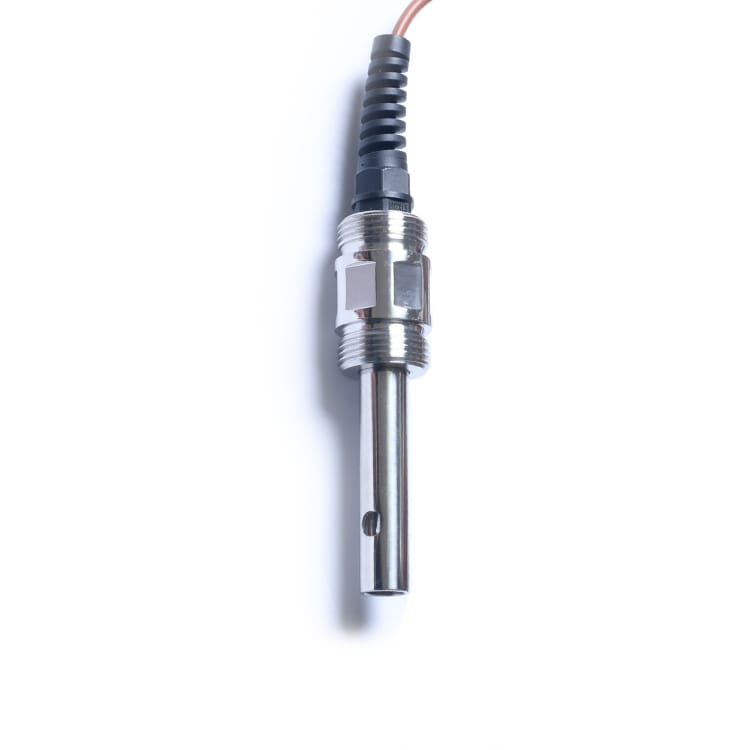

Hex-Body 2-Electrode Conductivity Sensor with PG Cable Gland
The InstroDirect IDC-2W-SS-H Hex-Body Stainless 2-Electrode Conductivity Sensor is a heavy-duty two-electrode conductivity probe with a solid 316 stainless hex body and PG cable gland for panel-mounted industrial installations. Rated to 100 °C and 10 bar, it suits process water, cooling loops, and boiler feedwater where vibration and thermal cycling are routine.
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement method | 2-electrode contacting |
| Conductivity range | 0 – 20 mS/cm |
| Cell constant (K) | K = 1.0 (cm⁻¹) |
| Accuracy | ±1% of reading |
| Temperature measurement | Integrated Pt1000 / Pt100 |
| Operating temperature | 0 – 100 °C |
| Pressure rating | ≤ 10 bar |
| Output signal | RS485 Modbus RTU + integrated Pt1000 |
| Body / wetted materials | 316 stainless hex body, graphite electrodes, FKM / EPDM O-rings |
| Process connection | G3/4 threaded (3/4″ NPT adapter available) |
| Ingress protection | IP68 |
| Cable | 5 m PG9 cable gland, 4-core shielded |
| Warranty | 12 months, Australian-backed |
Typical Australian Applications
- Boiler feedwater and condensate monitoring
- Closed-loop cooling water
- Chilled water systems
- Process water treatment
- Municipal water production
Why Integrators Choose the IDC-2W-SS-H
- Solid stainless hex body tightens into a pipe boss with a standard spanner
- PG9 cable gland ensures IP68 sealing even in wash-down environments
- 10 bar pressure rating covers most industrial process lines
- RS485 Modbus drops directly into PLC systems
- Integrated Pt1000 means one cable handles both conductivity and temperature
Installation & Calibration Notes
Pipe boss welded or threaded to 3/4″ NPT or G3/4. Torque with a spanner to 25 Nm — do not over-tighten. Two-point calibration with KCl standards every 3–6 months. Keep cable run separate from VFD / motor cables to avoid EMI on the RS485 line.
Frequently Asked Questions
What is the maximum cable run length on RS485?
Up to 1000 m on shielded twisted-pair cable at 9600 bps, and up to 300 m at 115200 bps. For longer runs use a Modbus TCP gateway.
Can the cable be cut or spliced?
We do not recommend field splicing RS485 shielded cable — it degrades signal integrity. Order the cable length you need (5 m, 10 m, 20 m, or 50 m).
Is this rated for drinking water contact?
The 316 stainless and FKM materials are WRAS-equivalent grade. For AU drinking water compliance, request the AS/NZS 4020 test statement with your order.
Australian Technical Support, Calibration & Consumables
- Phone and email technical support from Brisbane-based field engineers with 20+ years automation experience
- On-site two-point conductivity calibration across QLD, NSW, VIC with certificate of calibration
- KCl calibration solutions (1413 µS/cm, 12.88 mS/cm, 111.8 mS/cm) stocked locally
- Replacement electrodes and O-rings for extended service life — dispatched same business day ex Brisbane
- Next-day delivery across Australia for stock items; trade pricing from 5 units
InstroDirect also stocks the full water-analysis reagent range for pH, dissolved oxygen, chlorine, ammonia, and nitrate monitoring.
Request a Trade Quote
Panel builders, system integrators, council water departments, food & beverage engineers, and pharma/process teams get volume trade pricing. Submit a quote request and we’ll respond within one business day with stock, pricing, and lead time.
