How to specify an industrial pH sensor

The right pH sensor depends on five process variables: operating temperature, operating pressure, process fluid chemistry, process connection (thread, tri-clamp, flange), and the controller it has to talk to. Get those five right and the rest follows. The notes below walk through each application family and the trade-offs that decide selection.

Standard process pH — 100T, 100P, 200T, 300T, J201

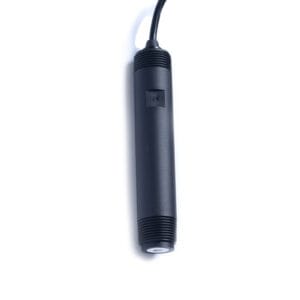

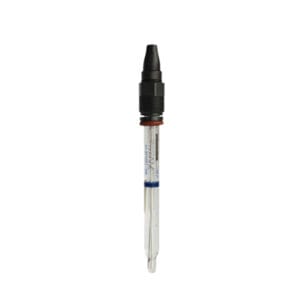

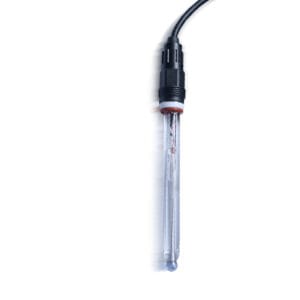

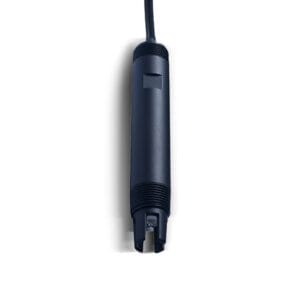

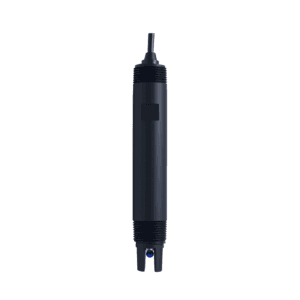

For general industrial process duty up to 100 °C and 10 bar — water and wastewater monitoring, neutralisation tanks, cooling-tower pH control, plating-bath monitoring — the standard process electrodes cover the bulk of installations. The IDH-100T is the 12 mm compact body for tight panels; 200T extends to a longer 12 mm body for greater immersion depth; 300T moves to 316 stainless trim for better mechanical durability; J201 is the industrial standard at 130 °C and 10 bar. The IDH-100P is the digital RS485 Modbus version of the 100T — same body, same sensing, but with a built-in transmitter and digital output. Specify the digital variant when you want to skip the analog transmitter and connect directly into a PLC over Modbus.

CIP and sanitary — 320T, 350T

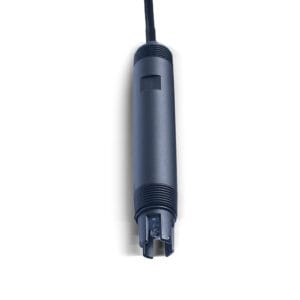

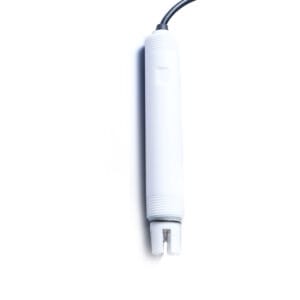

Food and beverage, dairy, brewing, and pharma upstream applications need an electrode that survives clean-in-place cycles (typically 70–85 °C caustic NaOH followed by acid rinse) and sterilisation (steam at 121–134 °C in some pharma). The IDH-320T is rated for 110 °C continuous duty with 3A-compatible tri-clamp construction — the bulk-volume F&B choice. The IDH-350T is the premium long-life variant with a triple-junction reference for extended electrode life in tough cleaning regimes.

Aggressive chemistry & pharma — 500T, J202-HF, J203-CF

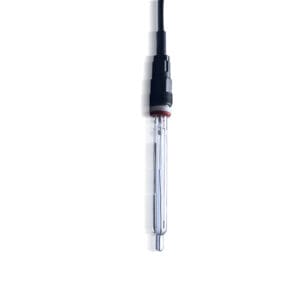

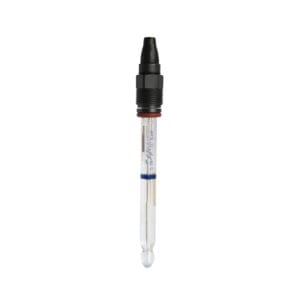

For chemistry that attacks glass or fouls reference junctions: the IDH-500T uses a PEEK body for aggressive solvents, hot acids, and pharma WFI duty (130 °C). The J202-HF is purpose-built for hydrofluoric acid streams in semiconductor and metal-finishing — HF eats standard glass electrodes in days, the J202-HF runs them for months. The J203-CF (Corrosion / Fouling-proof) handles streams with high suspended solids, slurries, and biological growth that clog conventional reference junctions.

Specialty process conditions — J605-HP, J301-CR, J204-V

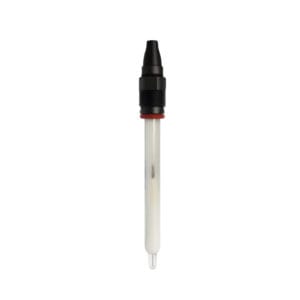

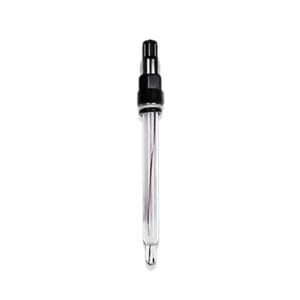

The J605-HP is rated to 13 bar and 130 °C for high-pressure alkali service — Bayer aluminium refining, mining alkali leach circuits, and high-pressure boiler-water sampling. The J301-CR handles cryogenic and refrigerated process lines down to −20 °C, where standard electrodes freeze the reference junction. The J204-V is the anti-clogging design for viscous and high-solids streams — fermentation slurries, paper-mill black liquor, and food-processing waste — using a flow-through reference design that resists fouling.

Digital RS485 vs analog mV — which to choose

Analog mV sensors output a Nernstian signal (±59 mV per pH unit at 25 °C) that requires a pH transmitter to convert into 4–20 mA or RS485 — the transmitter handles temperature compensation, calibration, and isolation. Digital sensors like the IDH-100P contain the transmitter inside the sensor head and output RS485 Modbus directly — fewer wiring junctions, lower noise, and direct PLC integration without a separate transmitter. Specify analog when you already have a pH controller in the panel; specify digital when starting from scratch or replacing a Memosens-locked installation.

Calibration and maintenance

Standard 2-point calibration uses pH 4.01 and pH 7.00 buffers (or pH 7.00 and pH 10.01 for alkaline streams). Recommended calibration interval is monthly for general process duty, weekly for CIP/sanitary applications, and after every cleaning cycle for high-solids or fouling streams. All InstroDirect digital sensors store calibration history on-board; analog sensors rely on the transmitter for storage.

Australian compliance

Sensors used in drinking-water service align with AS/NZS 4020:2018 (products in contact with drinking water). Sensors specified for state-EPA reporting on wastewater discharge meet the relevant NSW EPA, QLD DES, VIC EPA, SA EPA, and WA DWER reporting requirements when paired with a calibrated transmitter and documented calibration log.

Who specifies InstroDirect pH sensors?

Request a quote

Send us the process fluid, temperature, pressure, connection, and PLC platform. We’ll spec the right pH electrode and quote commissioning support. Contact our technical team or call 0403 082 383.
