Sanitary Tri-Clamp Conductivity Sensor — Pharma, Food & Beverage

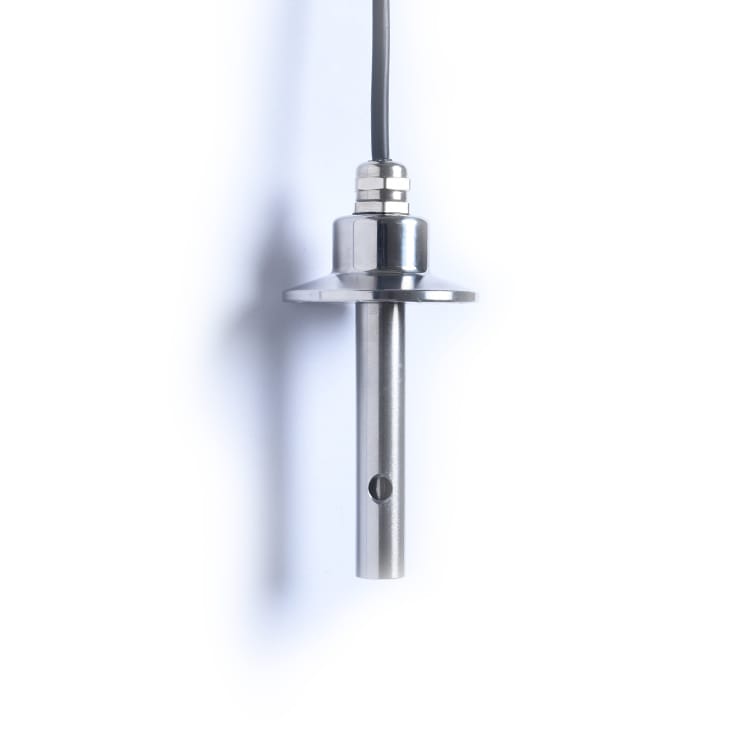

The InstroDirect IDC-2W-SAN Sanitary Tri-Clamp 2-Electrode Conductivity Sensor is a hygienic-process conductivity probe with a 316L polished stainless tri-clamp flange designed for CIP / SIP service in pharmaceutical, dairy, brewing, and food & beverage plants. 3A-compliant wetted materials and FKM / EPDM O-ring options cover clean-in-place acid / caustic cycles and steam sanitisation to 135 °C.
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement method | 2-electrode contacting |
| Conductivity range | 0 – 200 mS/cm |
| Cell constant (K) | K = 1.0 (cm⁻¹) |
| Accuracy | ±1% of reading |
| Temperature measurement | Integrated Pt1000 / Pt100 |
| Operating temperature | 0 – 135 °C (SIP steam compatible) |
| Pressure rating | ≤ 10 bar |
| Output signal | RS485 Modbus RTU + Pt1000 |
| Body / wetted materials | 316L mirror-polished stainless, FKM or EPDM O-rings (specify) |
| Process connection | 1.5″ or 2″ tri-clamp (specify when ordering) |
| Ingress protection | IP68 |
| Cable | 5 m IP68 cable with braided shield |
| Warranty | 12 months, Australian-backed |
Typical Australian Applications
- Dairy CIP return line phase separation
- Brewery wort and cleaning solution monitoring
- Pharma WFI / purified water loops
- Soft-drink bottling line sanitiser control
- Cheese and yoghurt fermentation
Why Integrators Choose the IDC-2W-SAN
- 316L 0.5 Ra polished finish meets 3A sanitary standards
- Handles full CIP caustic (NaOH) and acid (HNO3 / phosphoric) cycles
- SIP-rated to 135 °C steam sanitisation
- Tri-clamp mount makes swap-out a 30-second job
- Wide 0–200 mS/cm range covers both pure water and caustic phases on the same probe
Installation & Calibration Notes
Install vertically in the CIP return line or horizontally with the electrodes fully flooded. Use EPDM O-rings for caustic-heavy CIP, FKM for acid-heavy or steam. Calibrate with KCl standards monthly during production runs; validate after every SIP cycle.
Frequently Asked Questions
Is this 3A compliant?
Yes — 316L with 0.5 Ra polish. The full 3A certification documentation ships with every order on request.
What tri-clamp size should I order?
Most AU dairy and brewery CIP lines use 1.5″ or 2″. Specify your line size at order; we stock both ready for next-day dispatch.
Does it handle caustic and acid CIP?
Yes. 316L polish with EPDM O-rings handles 2–5% NaOH and nitric / phosphoric acids at 80 °C. For stronger chemistries, ask about the PEEK-body alternative.
Australian Technical Support, Calibration & Consumables
- Phone and email technical support from Brisbane-based field engineers with 20+ years automation experience
- On-site two-point conductivity calibration across QLD, NSW, VIC with certificate of calibration
- KCl calibration solutions (1413 µS/cm, 12.88 mS/cm, 111.8 mS/cm) stocked locally
- Replacement electrodes and O-rings for extended service life — dispatched same business day ex Brisbane
- Next-day delivery across Australia for stock items; trade pricing from 5 units
InstroDirect also stocks the full water-analysis reagent range for pH, dissolved oxygen, chlorine, ammonia, and nitrate monitoring.
Request a Trade Quote
Panel builders, system integrators, council water departments, food & beverage engineers, and pharma/process teams get volume trade pricing. Submit a quote request and we’ll respond within one business day with stock, pricing, and lead time.
